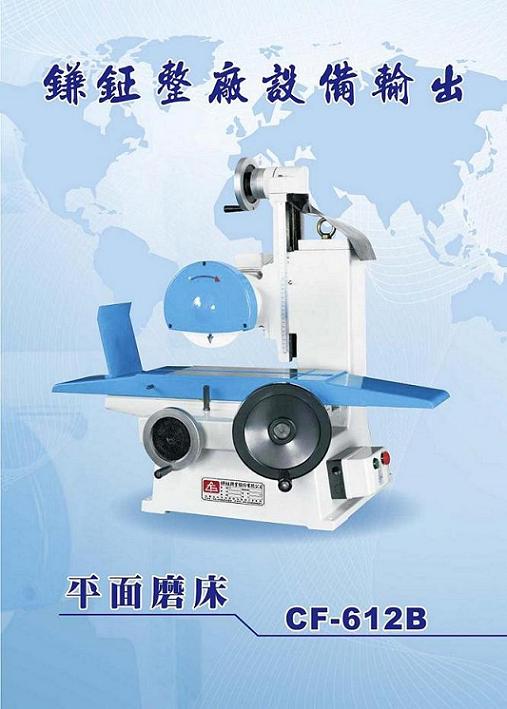

Models (CF-612B)
Table
Table size 152×305mm
Max.grinding length 320mm
max.grinding width 170mm
Distace from table surface to spindle center 280mm
Wheel size(dea×width×bore) 178×12.7×31.7mm
Spindle speed(50/60Hz) 2800/3600rpm
Spindle motor 0.75HP
T-slot 12.7×19.5×398mm
Vertical feed handwheel per gra. 0.01mm
Cross feed handwheel per gra 0.02mm
Coolant pump motor --
Floor space 430×440mm
Net weight 210kgs
Gross Weight 260kgs
Packing dimensions 1040×730×950
