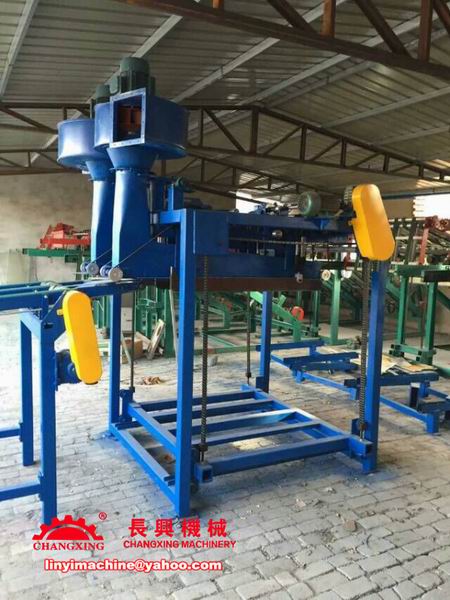

Natural Wood Veneer Stacking Machine
This machine is designed for automatic classification and stacking of rotary cut veneers.It adopts vacuum absorption conveying,and its high efficiency can save 3 manpowers,This solves the classifying and stacking problems for rotary cutting veneer factories.
Production Parameter
Model CXDD48-2 CXDD36 CXDD48 CXDD44
Stacking Size 4X8 3X6 4X8 4X4
Maximum Length 2600mm 200mm 1350mm 1350mm
Maximum Width 2200mm 2200mm 800mm 1100mm
Veneer Thickness 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm
Maximum Speed 90m/min 90m/min 90m/min 90m/min
Maximm Stacjing Height 1000mm 1000mm 1000mm 1000mm
Total Power 24kw 24kw 20.95kw 13.6kw
Dimensions 9000X3100X3510mm 8800X2500X3510mm 9800X2400X23080mm 85600X2400X3080mm
Weight 4700kgs 4000kgs 4800kgs 2500kgs
Production Parameter
Model CXDD48-2 CXDD36 CXDD48 CXDD44
Stacking Size 4X8 3X6 4X8 4X4
Maximum Length 2600mm 200mm 1350mm 1350mm
Maximum Width 2200mm 2200mm 800mm 1100mm
Veneer Thickness 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm
Maximum Speed 90m/min 90m/min 90m/min 90m/min
Maximm Stacjing Height 1000mm 1000mm 1000mm 1000mm
Total Power 24kw 24kw 20.95kw 13.6kw
Dimensions 9000X3100X3510mm 8800X2500X3510mm 9800X2400X23080mm 85600X2400X3080mm
Weight 4700kgs 4000kgs 4800kgs 2500kgs
