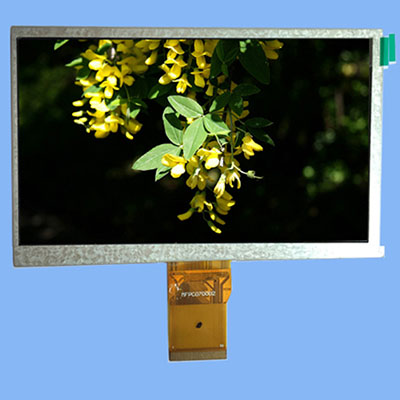

7.0 inch 800x480 TFT LCD module
7.0 inch 800x480 TFT LCD module
Specification
No. Item Specification Unit
1 Panel size 7.0 inch
2 Number of Pixels 800(H)*3(RGB)*480(V) Pixels
3 Active area 154.08(W)x85.92(H) mm
4 Pixels pitch 0.0642(W)xRGBx0.1790(H) mm
5 Module outline 164.9x100x3.5 mm/
6 Pixels arrangement RGB vertical stripe /
7 Display mode Normally White /
8 Viewing direction 6 O Clock
9 Display color 16.7M
10 Luminance(cd/m2) (160-200) typ Cd/㎡
11 Backlight Type White LED
12 Interface Type TTL
13 Input voltage 3.3 V
14 Drive IC HX8264+HX8664
15 Operation Temperature -20~70 ℃
16 Storage Temperature -30~80 ℃
