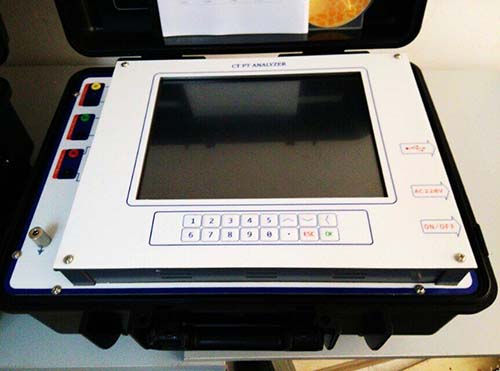

This Current Transformer CT Testing Equipment uses high-performance DSP and ARM, advanced manufacturing process to ensure that the product is stable and reliable, full-featured, high degree of automation, high test efficiency, is the professional testing equipment for the Current transformer and Power Transformer CT / PT industry.


Test Standard

GDVA404 Current Transformer CT Testing Equipments Conforms: IEC60044-1, IEC60044-6, GB1208, GB16847, C57.13


Application:

Tests for current transformer:
1
Excitation curve and parameters test
2
Turns ratio test
3
Ratio and phase error test
4
Polarity mark check
5
Coil resistance measurement
6
Secondary loop burden measurement
7
Error line curve test for protection CT
8
Transient CT parameters test
9
CT nameplate guess
10
Saturation hysteresis loop curve measurement
Tests for voltage transformer:
1
Turns ratio test and phase angle error test
2
Polarity test
3
Secondary burden test
4
Coil resista
