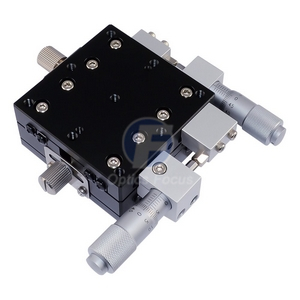

Product ID: MAXY-60R-13
Send Inquiry
Features:
Stacked xy translation stage.
13mm travel range with 0.01mm resolution.
High quality micrometer head with 0.5mm pitch.
Precision crossed roller guide provides high accuracy and parallelism.
Easy stack to xyz, xyzθ assembly.
Description:
The manual xy linear stage uses crossed roller guide which ensures the high precision and smooth of motion. The main material of the manual xy translation stage is aluminum alloy, so the weight of manual xy stage is very light and the stage can be easily built in other equipment.
Specifications:
Model MAXY-60R-13
Axes of Travel X,Y
Platform Size 60x60mm
Travel ±6.5mm
Drive Micrometer Head(Right)
Guide Type Crossed Roller Guide
Readable Resolution 0.01mm
Accuracy 0.01mm
Parallelism 0.01mm
Material Aluminum Alloy
Load Capacity 49N(5kgf)
Weight 0.48kg
Stacked xy translation stage.
13mm travel range with 0.01mm resolution.
High quality micrometer head with 0.5mm pitch.
Precision crossed roller guide provides high accuracy and parallelism.
Easy stack to xyz, xyzθ assembly.
Description:
The manual xy linear stage uses crossed roller guide which ensures the high precision and smooth of motion. The main material of the manual xy translation stage is aluminum alloy, so the weight of manual xy stage is very light and the stage can be easily built in other equipment.
Specifications:
Model MAXY-60R-13
Axes of Travel X,Y
Platform Size 60x60mm
Travel ±6.5mm
Drive Micrometer Head(Right)
Guide Type Crossed Roller Guide
Readable Resolution 0.01mm
Accuracy 0.01mm
Parallelism 0.01mm
Material Aluminum Alloy
Load Capacity 49N(5kgf)
Weight 0.48kg
