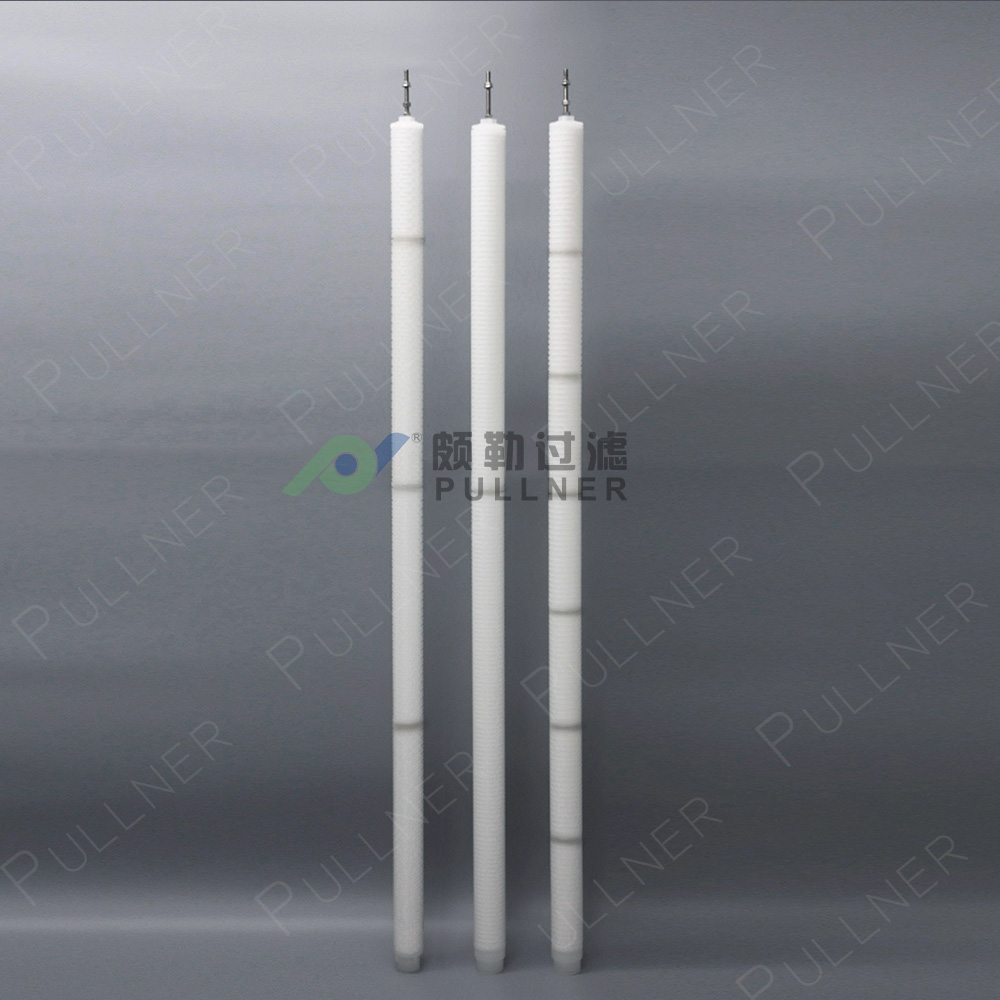

condensate polishing filters element
Parts Material
Filter Media: Polypropylene
Center Core: Reinforced Polypropylene
Dimensions(nominal)
Outside Diameter: 65mm, 68.5mm, 70mm
Length: 70"
Connection Thread: 1 1/2"-12(Customized as customers’ request)
Bottom Thread: M6, M8, M10
Filter Performance
Micron: 1μm, 5μm(operation filter), 10μm(startup filter)
Filter area: 6.5㎡
Maximum Operating Temperature: 85℃
Maximum Operating Differential Pressure: 2.8bar, 65℃
Design Flow Rate: 3.9m³/h～4.5m³h
General Description
PHFZ Series Pleated Filter Cartridge can be back washed, all welded using hot-melt, no secondary pollution, no media loss, is designed for condensate polishing of power plant. It can be divided into PHFZ-Ⅰ(7 parts), PHFZ-Ⅱ(4+3) and PHFZ-Ⅲ (3 + 1) three types. The PHFZ-Ⅱ (4 + 3) is welded of 40" and 30", is the only one filter with 69mm diameter and integral outer support in domestic.
Filter Media: Polypropylene
Center Core: Reinforced Polypropylene
Dimensions(nominal)
Outside Diameter: 65mm, 68.5mm, 70mm
Length: 70"
Connection Thread: 1 1/2"-12(Customized as customers’ request)
Bottom Thread: M6, M8, M10
Filter Performance
Micron: 1μm, 5μm(operation filter), 10μm(startup filter)
Filter area: 6.5㎡
Maximum Operating Temperature: 85℃
Maximum Operating Differential Pressure: 2.8bar, 65℃
Design Flow Rate: 3.9m³/h～4.5m³h
General Description
PHFZ Series Pleated Filter Cartridge can be back washed, all welded using hot-melt, no secondary pollution, no media loss, is designed for condensate polishing of power plant. It can be divided into PHFZ-Ⅰ(7 parts), PHFZ-Ⅱ(4+3) and PHFZ-Ⅲ (3 + 1) three types. The PHFZ-Ⅱ (4 + 3) is welded of 40" and 30", is the only one filter with 69mm diameter and integral outer support in domestic.
Certificate
- ISO 9001
- FDA
