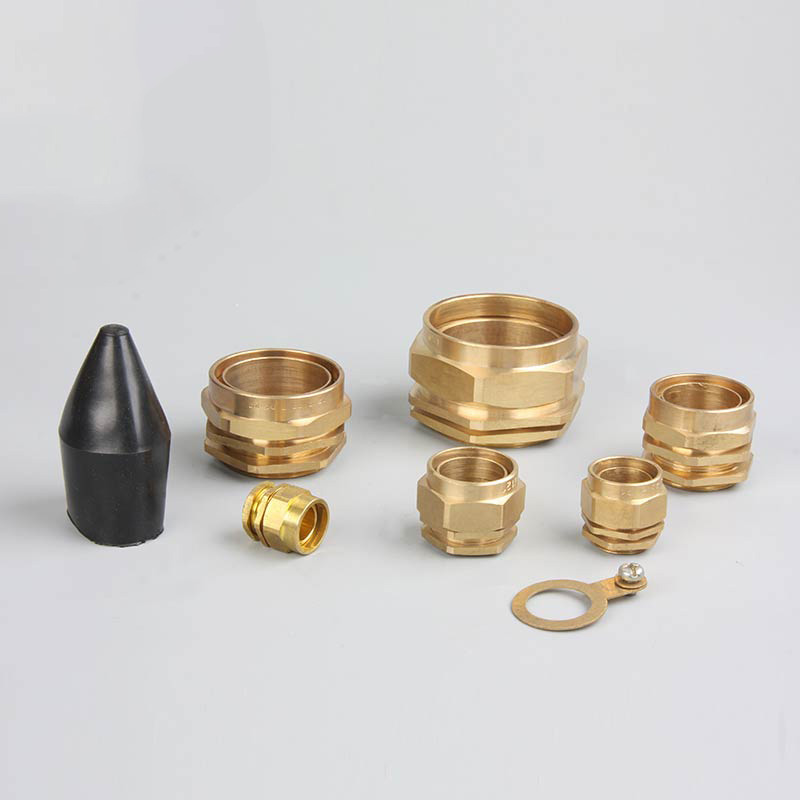

Material: Brass or Brass, nickel plated
Standard: BS 6121-1-2005
Protection Rate: IP30
Temperature: -80°C - +600°C
Thread options: Metric, NPT, BSP& PG
Application: Dry Indoor for use with all types of SWA extruded Bending Cable.
Cable Type: SWA Extruded Bending Cable.
Accessories: Matching accessories available like PVC Shrouds, Locknuts and earth tag.
BW Cable Gland – Armored, Metric, NPT Thread
Code Thread size Min Thread length L(mm) Cable diameter(mm)
Metric NPT Max “A” (mm) Max “B” (mm)
QW-BW20S M20 1/2’’ 10 11.5 15.5
QW-BW20L M20 1/2’’ 10 14 20.5
QW-BW25S M25 3/4’’ 10 18 24
QW-BW25L M25 3/4’’ 10 20 27
QW-BW32S M32 1’’ 10 26.3 33.5
QW-BW32L M32 1’’ 10 26.3 33.5
QW-BW40S M40 1.1/4’’ 13 31.5
