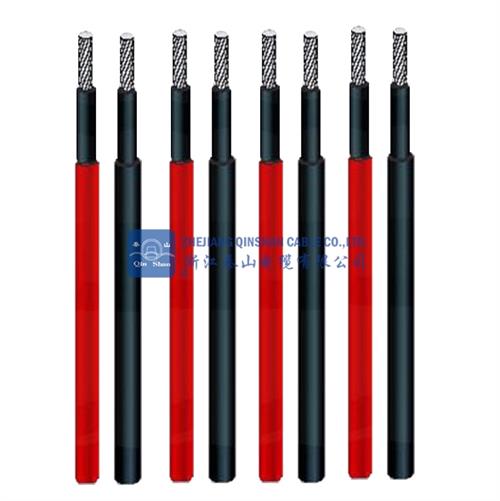

photovoltaic cable,solar cable
Conductor
Tinned fine copper strands, according to VDE0295/IEC60228, Class 5
Insulation
Polyolefin copolymer electron-beam cross-linked
Jacket
Polyolefin copolymer electron-beam cross-linked, UV and ozone resistant
Jacket color
All color
Rated voltage
U0/U=600/1000V AC; 1000/1800V DC
Test voltage
6500V, 50Hz, 5 minutes
Max. conductor temperature
-40 ~ 120
Ambient temperature
-40 ~90
Max. Short circuit temperature
280
Bending radius
Fixed installation: >4xO.D.; Occasionally moved: >5xO.D.
Fire performance
IEC60332-1
Smoke emission
IEC61034; EN50268-2
Low fire load
DIN51900
Photovoltaic cables (Solar cables) are widely used in photovoltaic system power station, terminal block, connector, inverter, junction box and so on.
It is flexible, uvioresistant, Ozone resistant, hydrolysis resistant, able to be used in high temperature occasion.
It could work for over 25 years at
Tinned fine copper strands, according to VDE0295/IEC60228, Class 5
Insulation
Polyolefin copolymer electron-beam cross-linked
Jacket
Polyolefin copolymer electron-beam cross-linked, UV and ozone resistant
Jacket color
All color
Rated voltage
U0/U=600/1000V AC; 1000/1800V DC
Test voltage
6500V, 50Hz, 5 minutes
Max. conductor temperature
-40 ~ 120
Ambient temperature
-40 ~90
Max. Short circuit temperature
280
Bending radius
Fixed installation: >4xO.D.; Occasionally moved: >5xO.D.
Fire performance
IEC60332-1
Smoke emission
IEC61034; EN50268-2
Low fire load
DIN51900
Photovoltaic cables (Solar cables) are widely used in photovoltaic system power station, terminal block, connector, inverter, junction box and so on.
It is flexible, uvioresistant, Ozone resistant, hydrolysis resistant, able to be used in high temperature occasion.
It could work for over 25 years at
Certificate
- ISO9001:2015; CCC; TUV; SONCAP
