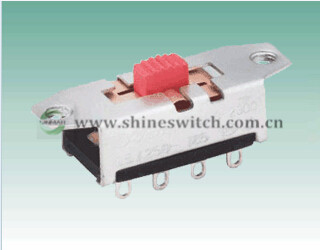

Shanghai Sinmar ElectronicsTin XN-1-2316-BLO Slide Switches 9(4.5)A125/250VAC 8PIN Solder Switches
Product ID: XN-1-2316-BLO
Send Inquiry
Technical characteristics
Rating: 8A 250VAC
8A 250V
16A 125VAC / 8A 250VAC
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: ≤30MΩ (initial value)
Withstand voltage: 2500V, 50 / 60Hz, 1min
Switching frequency: 3.5 times / sec (CQC, TUV, VDE)
6-10 times / sec (UL)
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Switch button efforts: ≥50g
Life: Mechanical ≥10,000 times; electrical ≥6,000 times
Working temperature: 0 ~ 65 ° C
Wire length: Soft line 0.75 ~ 1.5mm²
Hard line 1 ~ 2.5mm²
Safety Certification: UL, CUL, VDE, CQC
Rating: 8A 250VAC
8A 250V
16A 125VAC / 8A 250VAC
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: ≤30MΩ (initial value)
Withstand voltage: 2500V, 50 / 60Hz, 1min
Switching frequency: 3.5 times / sec (CQC, TUV, VDE)
6-10 times / sec (UL)
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Switch button efforts: ≥50g
Life: Mechanical ≥10,000 times; electrical ≥6,000 times
Working temperature: 0 ~ 65 ° C
Wire length: Soft line 0.75 ~ 1.5mm²
Hard line 1 ~ 2.5mm²
Safety Certification: UL, CUL, VDE, CQC
Certificate
- UL
- CUL
- VDE
- CQC
