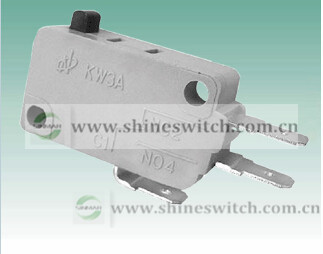

Shanghai Sinmar Electronics KW3A-16Z0-C Micro Switches 16A250VAC 3PIN Basic Form Switches
Product ID: KW3A-16Z0-C
Send Inquiry
Technical characteristics
Working speed: 0.1mm ~ 1m / s and drive the way
Rating: 16A250VAC (default value) 10A250VAC / 5A250VAC / 1A250VAC
Operating Frequency: Mechanical 60 times / min; Electrical 25 times / min
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: ≤30mΩ (initial value)
Withstanding voltage:
Between the carrying metal parts and ground AC1000V, 50 / 60Hz,1min
Between the terminal and uncharged metal parts, AC3750V 50 / 60Hz, 1min
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Shock: destroy action force> 0.5N: 1000M / S ^ 2 (about 100G) max
Operating force ≤0.5N: 400M / S ^ 2 (about 40G) max
Fault Action Force> 0.5N: 200M / S ^ 2 (about 20G) max
Operating force ≤0.5N: 100M / S ^ 2 (about 10G) max
Life: Mechanical≥2,000,000 times
Electrical ≥50,000 times
Weight: about 6.2g (no boom)
Safety Certification: UL, CUL, VDE, TUV, SEMKO, DEMKO, NEMKO
Working speed: 0.1mm ~ 1m / s and drive the way
Rating: 16A250VAC (default value) 10A250VAC / 5A250VAC / 1A250VAC
Operating Frequency: Mechanical 60 times / min; Electrical 25 times / min
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: ≤30mΩ (initial value)
Withstanding voltage:
Between the carrying metal parts and ground AC1000V, 50 / 60Hz,1min
Between the terminal and uncharged metal parts, AC3750V 50 / 60Hz, 1min
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Shock: destroy action force> 0.5N: 1000M / S ^ 2 (about 100G) max
Operating force ≤0.5N: 400M / S ^ 2 (about 40G) max
Fault Action Force> 0.5N: 200M / S ^ 2 (about 20G) max
Operating force ≤0.5N: 100M / S ^ 2 (about 10G) max
Life: Mechanical≥2,000,000 times
Electrical ≥50,000 times
Weight: about 6.2g (no boom)
Safety Certification: UL, CUL, VDE, TUV, SEMKO, DEMKO, NEMKO
Certificate
- UL
- CUL
- VDE
- TUV
- SEMKO
- DEMKO
- FIMKO
- CE
- EK
