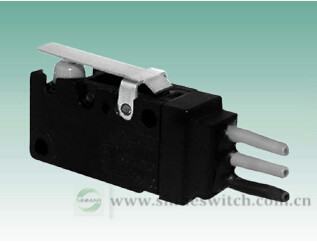

Shanghai Sinmar Electronics WS2-Z0 Micro Switches 16A250VAC 3PIN Short Roller Switches
Product ID: WS2-Z0
Send Inquiry
Technical particularity
Working speed: 0.1mm ~ 1m / s (no boom time)
Rating: 5 (2) A250VAC (ratings) /5A125VAC/5A30VDC,0.1A250VAC/0.1A125VAC/0.130VDC
Operating Frequency: Mechanical 60 beats / min, electric 25 beats / min
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: ≤30MΩ
Withstanding voltage: contact between terminals with extremely AC1000V, 50 / 60Hz, 1min
Between the carrying metal parts and ground, wiring and
AC1500V between uncharged metal parts, 50 / 60Hz, 1min
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Shock: Durability: 1000M / S ^ 2 (approx.100G) max
Malfunction: 300M / S ^ 2 (approx..40G) max
Life: Mechanical ≥1,000,000 times
Electrical ≥50,000 times
Electric shock protection class: Ⅰ level
Enclosure protection class: IEC IP67
Safety Certification: UL, CUL, TUV, CE
Working speed: 0.1mm ~ 1m / s (no boom time)
Rating: 5 (2) A250VAC (ratings) /5A125VAC/5A30VDC,0.1A250VAC/0.1A125VAC/0.130VDC
Operating Frequency: Mechanical 60 beats / min, electric 25 beats / min
Insulation resistance: ≥100mΩ (500VDC)
Contact resistance: ≤30MΩ
Withstanding voltage: contact between terminals with extremely AC1000V, 50 / 60Hz, 1min
Between the carrying metal parts and ground, wiring and
AC1500V between uncharged metal parts, 50 / 60Hz, 1min
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Shock: Durability: 1000M / S ^ 2 (approx.100G) max
Malfunction: 300M / S ^ 2 (approx..40G) max
Life: Mechanical ≥1,000,000 times
Electrical ≥50,000 times
Electric shock protection class: Ⅰ level
Enclosure protection class: IEC IP67
Safety Certification: UL, CUL, TUV, CE
Certificate
- UL
- CUL
- VDE
- TUV
- SEMKO
- DEMKO
- FIMKO
- CE
- EK
