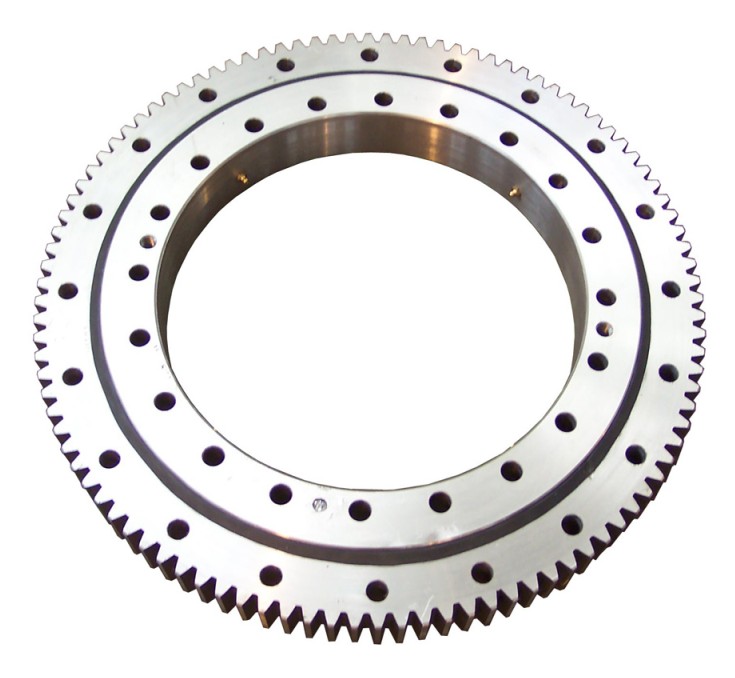

External gear E.1200.20.00.B slewing ring bearing price

Material:42CrMo/50Mn
Structure:External gear four point contact slewing ball bearing
Hardness:55~62HRC
Inner and outer ring modulation hardness:229-269HB

Dimensions:

Da:1198.1mm

U:1095.5mm

C:1092.5mm

Di:1022mm

Fixing holes:

La:1135mm

na:44

Li:1048mm

ni:48

Gear teeth:

P:1184mm

m:8

z:148

Tooth force:

Fz nor:17.60KN

Fz max:35.20KN

Mass:

Weight:91kgs

if you have needs of this type slewing bearing, please contact us freely.
