Shaft Slip Ring

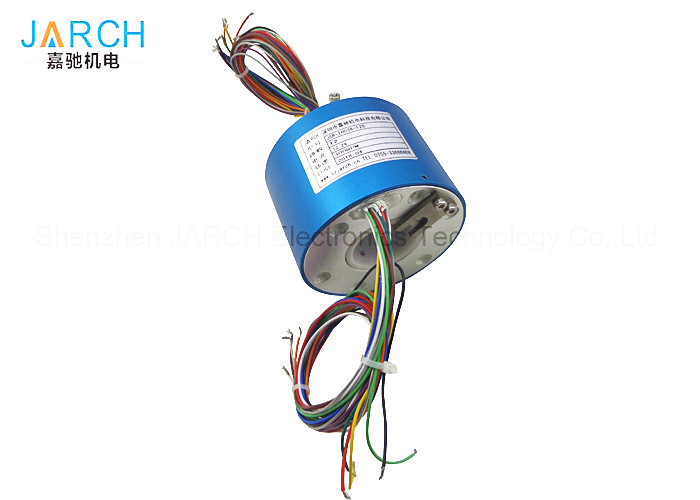

38.10mm Through Bore Electrical Slip Ring 3.9 " Overall Diameter With Rotary Joint
Product ID: JSR-TH38
Send Inquiry
JARCH Through bore slip ring, bore size 38.10mm(1.5"),Overall Diameter: 99mm(3.9"), slip ring rotary joint electrical connector
Rings 2~48 Current Signal(2A) or 5A/10A/15A/20/30
Voltage mV~380 VDC/VAC Max speed 500RPM (1000~3000RPM Optional)
Through bore size 38.1mm(1.5") Overall diameter 99mm(3.9")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Precious Metal:Gold-Gold
Electrical noise
Rings 2~48 Current Signal(2A) or 5A/10A/15A/20/30
Voltage mV~380 VDC/VAC Max speed 500RPM (1000~3000RPM Optional)
Through bore size 38.1mm(1.5") Overall diameter 99mm(3.9")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Precious Metal:Gold-Gold
Electrical noise
Certificate
- CE
- FCC
- ROHS
