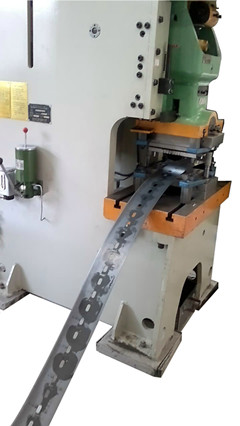

Continuous punching type u-shaped bracket forming unit
A、Equipment Structure
This production lineconsists of leveler,feeder/puching,roll forming,cutting,etc.
The production line is composed of de-coiler,punching,roll forming,cutting and electric control system , etc.
B、Technical parameter
NO. Item Unit Parameter Remark
1 Material Type galvanized sheet,strip steel,etc
Map ≥350
Strength of material sheet mm 1.5~2.5
2 Profile sizes Thickness of material sheet mm
3 Production speed m/min Forming speed:about 8-12m/min
4 Material of roller GCr15 quenching treatment
5 Drive type Gearbox driven
6 Motor Power kw About 40Kw
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 35X4X3.9
This production lineconsists of leveler,feeder/puching,roll forming,cutting,etc.
The production line is composed of de-coiler,punching,roll forming,cutting and electric control system , etc.
B、Technical parameter
NO. Item Unit Parameter Remark
1 Material Type galvanized sheet,strip steel,etc
Map ≥350
Strength of material sheet mm 1.5~2.5
2 Profile sizes Thickness of material sheet mm
3 Production speed m/min Forming speed:about 8-12m/min
4 Material of roller GCr15 quenching treatment
5 Drive type Gearbox driven
6 Motor Power kw About 40Kw
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 35X4X3.9
