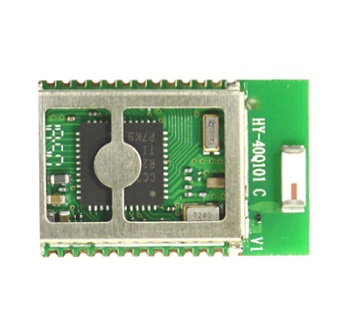

bluetooth PCB module with TI chip
Automotive bluetooth module with BQB,CE,IC,FCC etc certification
Product ID: HY-40Q101CC
Send Inquiry
Product Model：HY-40Q101CC
Size: 25.16*15.22*2.6mm（with shield case）
Modulation Mode：GFSK
Bluetooth v4.2 and v.5.0 single mode hardware compliant
Antenna Type：Ceramic Antennas
Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 2: –40°C to +105°C
Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C3
Integrated Bluetooth low energy stack
GAP, GATT, L2CAP, SMP Bluetooth low energy profiles
Compliance Bluetooth BQB BLE 4.2 and 5.0, And Compliance worldwide RF Regulations. Example: China 3C, Europe CE ETSI RED, America FCC, Canada IC, Japan TELEC, Korea KC…etc.
IC Transmit power :+5 dBm typical
IC Receiver sensitivity: -97dBm typical
Ultra low current consumption : Standy by mode : 3.6uA ( with Cache RTC, CPU, RAM and partial register retention).
Shutdown mode:. No clocks running, no retention: 150 nA ( Typical)
Bluetooth IC:TI C
Size: 25.16*15.22*2.6mm（with shield case）
Modulation Mode：GFSK
Bluetooth v4.2 and v.5.0 single mode hardware compliant
Antenna Type：Ceramic Antennas
Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 2: –40°C to +105°C
Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C3
Integrated Bluetooth low energy stack
GAP, GATT, L2CAP, SMP Bluetooth low energy profiles
Compliance Bluetooth BQB BLE 4.2 and 5.0, And Compliance worldwide RF Regulations. Example: China 3C, Europe CE ETSI RED, America FCC, Canada IC, Japan TELEC, Korea KC…etc.
IC Transmit power :+5 dBm typical
IC Receiver sensitivity: -97dBm typical
Ultra low current consumption : Standy by mode : 3.6uA ( with Cache RTC, CPU, RAM and partial register retention).
Shutdown mode:. No clocks running, no retention: 150 nA ( Typical)
Bluetooth IC:TI C
Certificate
- ISO9001:2015
- BQB
- CE
- IC
- FCC
- REACH
- etc
