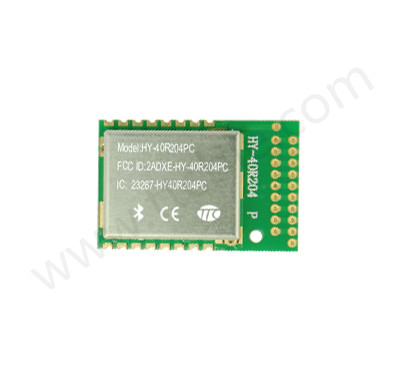

BLE 5.0 module with BQB,IC,FCC certification
Product Model：HY-40R204
Modulation Mode：GFSK
Antenna Type： PCB antennas, ceramic antennas, IPEX, wire antennas
Bluetooth BLE 5.0 single mode compliant
Transmission Distance：80M（The actual distance is subject to the test environment）
Integrated Bluetooth low energy stack
GAP, GATT, L2CAP, SMP Bluetooth low energy profiles
Compliance: BQB BLE5.0, FCC, IC(Canada), CE ETSI RED…etc. worldwide RF Regulations.
Transmit power :-21dBm~+5dBm typical
Receiver sensitivity: -97dBm typical
In-System-Programmable Flash 128KB SRAM 8KB
10 programmable GPIO
Programmable ARM Cortex-M3 processor for embedding full applications
Low current consumption :Shutdown. No clocks running, no retention: 150nA(Typical)
Bluetooth IC：TTC2640R2 4*4*0.9mm 32pin IC,Used TI CC2640R2
Modulation Mode：GFSK
Antenna Type： PCB antennas, ceramic antennas, IPEX, wire antennas
Bluetooth BLE 5.0 single mode compliant
Transmission Distance：80M（The actual distance is subject to the test environment）
Integrated Bluetooth low energy stack
GAP, GATT, L2CAP, SMP Bluetooth low energy profiles
Compliance: BQB BLE5.0, FCC, IC(Canada), CE ETSI RED…etc. worldwide RF Regulations.
Transmit power :-21dBm~+5dBm typical
Receiver sensitivity: -97dBm typical
In-System-Programmable Flash 128KB SRAM 8KB
10 programmable GPIO
Programmable ARM Cortex-M3 processor for embedding full applications
Low current consumption :Shutdown. No clocks running, no retention: 150nA(Typical)
Bluetooth IC：TTC2640R2 4*4*0.9mm 32pin IC,Used TI CC2640R2
Certificate
- ISO9001:2015
- BQB
- CE
- IC
- FCC
- REACH
- etc
