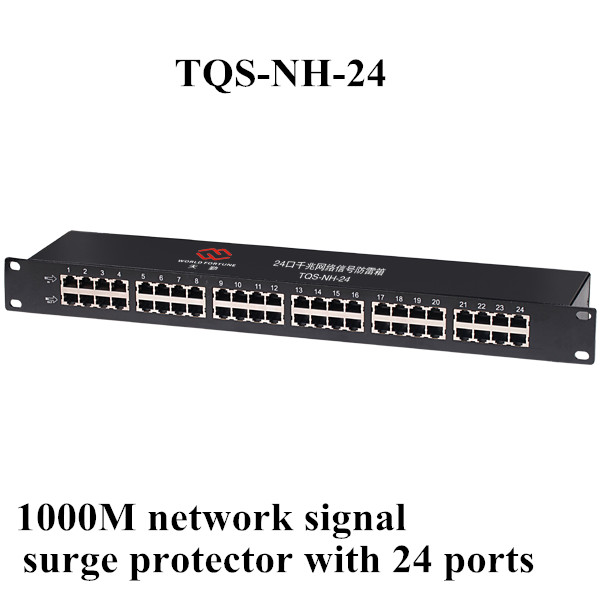

surge protector for networking
1. Product features
Multi stage surge protection
Gas-Tube + TVS technology
TVS array technology
Dual protection in Common mode and differential mode, multi-channel optional
Low insertion loss
Quick response
High current capacity
Low limited voltage
24 ports
2. Applications
Lightning protection of 100/1000Mbps network equipments
Computer
Server
Switch
3. Technical data
Model TQS-NH-24
Nominal operating voltage Un 5V
Nominal discharge current In (8/20μs) 3KA
Maximum discharge current Imax (8/20μs) 5KA
Protection level Up (8/20μs,3KA) ≤20V
Response time Ta ≤1ns
Transmission rate 1000Mbps
Insertion loss ≤0.5dB
Protection modes 1/2, 3/6, 4/5, 7/8
Protection route 24
Dimension 482*86*44mm
Weight per unit 120g
Mounting type Series connected before the protected equipments
Housing material A3 steel
Index of protection IP20
Operating environment Temperature:-40—+85℃ humidity: ≤95%
warranty Five-year warranty, three-year replacem
Multi stage surge protection
Gas-Tube + TVS technology
TVS array technology
Dual protection in Common mode and differential mode, multi-channel optional
Low insertion loss
Quick response
High current capacity
Low limited voltage
24 ports
2. Applications
Lightning protection of 100/1000Mbps network equipments
Computer
Server
Switch
3. Technical data
Model TQS-NH-24
Nominal operating voltage Un 5V
Nominal discharge current In (8/20μs) 3KA
Maximum discharge current Imax (8/20μs) 5KA
Protection level Up (8/20μs,3KA) ≤20V
Response time Ta ≤1ns
Transmission rate 1000Mbps
Insertion loss ≤0.5dB
Protection modes 1/2, 3/6, 4/5, 7/8
Protection route 24
Dimension 482*86*44mm
Weight per unit 120g
Mounting type Series connected before the protected equipments
Housing material A3 steel
Index of protection IP20
Operating environment Temperature:-40—+85℃ humidity: ≤95%
warranty Five-year warranty, three-year replacem
Certificate
- CE
- FCC
- ISO9001
- RoHS
- national type test
