1. Product features
Multi stage surge protection
Low insertion loss
Quick response
High current capacity
Low limited voltage
2. Applications
Lightning protection of audio signal or digital carrier equipments
Lightning protection of over current of telephone, fax machine, Modem, switch ADSL, ISDN
FM receivers
Access control systems
Monitoring systems
3. Technical data

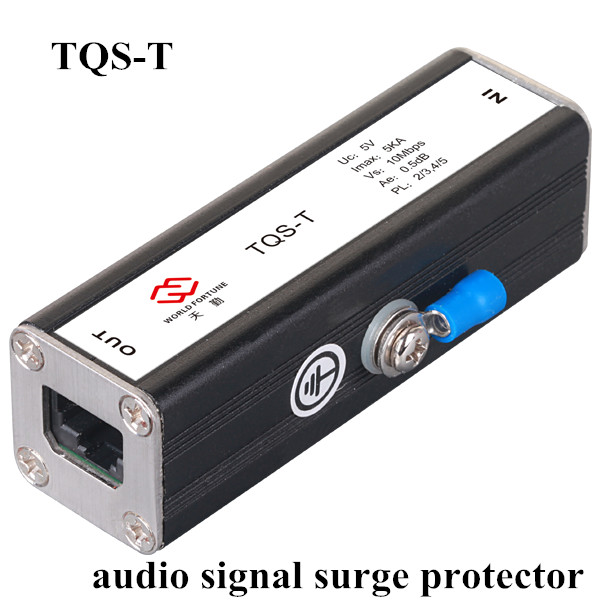

Model TQS-T
Nominal operating voltage Un 5V
Nominal discharge current In (8/20μs) 3KA
Maximum discharge current Imax (8/20μs) 5KA
Protection level Up (8/20μs,3KA) ≤20V
Response time Ta ≤1ns
Transmission rate 10Mbps
Insertion loss ≤0.5dB
Protection route 1
Dimension 85*25*25mm
Connector type RJ11
Weight 78g
Mounting type Series connected before the protected equipments
Housing material Aluminum
Index of protection IP20
Operating environment Temperature:-40—+85℃ humidity: ≤95%
warranty Five-year warranty, three-year replacement
Related items TQS-T-16, TQS-TY; TQS-T110
Multi stage surge protection
Low insertion loss
Quick response
High current capacity
Low limited voltage
2. Applications
Lightning protection of audio signal or digital carrier equipments
Lightning protection of over current of telephone, fax machine, Modem, switch ADSL, ISDN
FM receivers
Access control systems
Monitoring systems
3. Technical data
Model TQS-T
Nominal operating voltage Un 5V
Nominal discharge current In (8/20μs) 3KA
Maximum discharge current Imax (8/20μs) 5KA
Protection level Up (8/20μs,3KA) ≤20V
Response time Ta ≤1ns
Transmission rate 10Mbps
Insertion loss ≤0.5dB
Protection route 1
Dimension 85*25*25mm
Connector type RJ11
Weight 78g
Mounting type Series connected before the protected equipments
Housing material Aluminum
Index of protection IP20
Operating environment Temperature:-40—+85℃ humidity: ≤95%
warranty Five-year warranty, three-year replacement
Related items TQS-T-16, TQS-TY; TQS-T110
Certificate
- CE
- FCC
- ISO9001
- RoHS
- national type test
