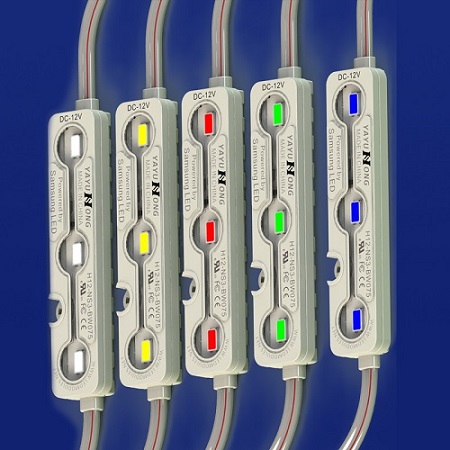

LED chip brand ：Cree / Samsung / Epistar
Chip size ：5630/5054
Operating voltage ：DC 12V / 24V
Power dissipation ：0.75/1.2W
Emitting angle ：160°
Luminous intensity ：100lm（typ.）
Dimension：66*17*8 mm （L x W x H）
LED quantity ：3 pcs
Emitting color ：Red/Yellow/Blue/Green/White
Waterproofing rate ：IP67
IP type ：Injection workmanship
Material of main cabinet： ABS , fireproof and inflame retarding
Material of Lens ：Optical Lens, fireproof and inflame retarding
Material of connecting cable ：UL20 AWG， 300V/80°C
Color of connecting cable ：Positive: red; negative: white
Max. In series ：Based on Power Voltage Supply
Adhesive type ：3M adhesive Sponge
Operating temperature ：-30~85℃
Storage temperature ：-40~100℃
Warranty ：5 years
Chip size ：5630/5054
Operating voltage ：DC 12V / 24V
Power dissipation ：0.75/1.2W
Emitting angle ：160°
Luminous intensity ：100lm（typ.）
Dimension：66*17*8 mm （L x W x H）
LED quantity ：3 pcs
Emitting color ：Red/Yellow/Blue/Green/White
Waterproofing rate ：IP67
IP type ：Injection workmanship
Material of main cabinet： ABS , fireproof and inflame retarding
Material of Lens ：Optical Lens, fireproof and inflame retarding
Material of connecting cable ：UL20 AWG， 300V/80°C
Color of connecting cable ：Positive: red; negative: white
Max. In series ：Based on Power Voltage Supply
Adhesive type ：3M adhesive Sponge
Operating temperature ：-30~85℃
Storage temperature ：-40~100℃
Warranty ：5 years
Certificate
- ISO14001.ISO9001.CE.RoHs
