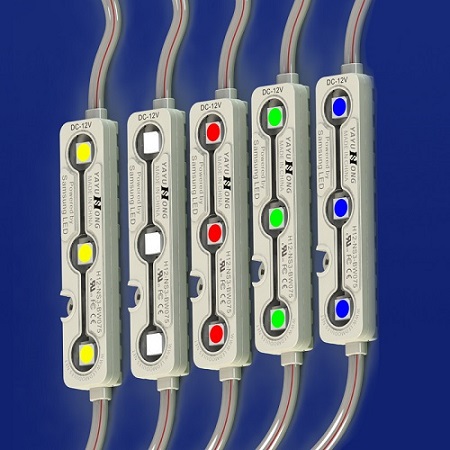

we have all color u want~
LED chip brand:Cree / Samsung / Epistar
Chip size:5630/5054
Operating voltage:DC 12V / 24V
Power dissipation:1.2W
Emitting angle:160°
Luminous intensity:100lm(typ.)
Dimension:66*17*8 mm(L x W x H)
LED quantity:3 pcs
Emitting color:Red/Yellow/Blue/Green/White
Waterproofing rate:IP67
IP type:Injection workmanship
Material of main cabinet: ABS, fireproof and inflame retarding
Material of Lens:Optical Lens, fireproof and inflame retarding
Material of connecting cable:UL20 AWG, 300V/80°C
Color of connecting cable:Positive: red; negative: white
Max. In series:Based on Power Voltage Supply
Adhesive type:3M adhesive Sponge
Operating temperature:-30~85℃
Storage temperature:-40~100℃
Warranty:5 years
Chip size:5630/5054
Operating voltage:DC 12V / 24V
Power dissipation:1.2W
Emitting angle:160°
Luminous intensity:100lm(typ.)
Dimension:66*17*8 mm(L x W x H)
LED quantity:3 pcs
Emitting color:Red/Yellow/Blue/Green/White
Waterproofing rate:IP67
IP type:Injection workmanship
Material of main cabinet: ABS, fireproof and inflame retarding
Material of Lens:Optical Lens, fireproof and inflame retarding
Material of connecting cable:UL20 AWG, 300V/80°C
Color of connecting cable:Positive: red; negative: white
Max. In series:Based on Power Voltage Supply
Adhesive type:3M adhesive Sponge
Operating temperature:-30~85℃
Storage temperature:-40~100℃
Warranty:5 years
Certificate
- ISO14001.ISO9001.CE.RoHs
Main Products
led module,led trip
