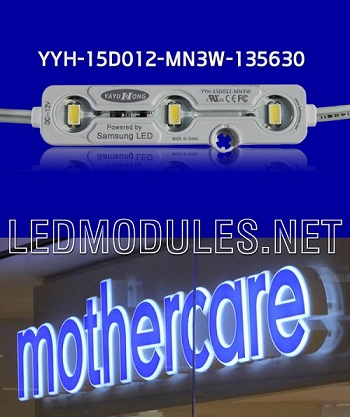

5630
LED chip brand：Cree / Samsung / Epistar
Chip size：5630/5054
Operating voltage：DC 12V / 24V
Power dissipation：1.2W
Emitting angle：160°
Luminous intensity：100lm（typ.）
Dimension：66*17*8 mm（L x W x H）
LED quantity：3 pcs
Emitting color：Red/Yellow/Blue/Green/White
Waterproofing rate：IP67
IP type：Injection workmanship
Material of main cabinet： ABS, fireproof and inflame retarding
Material of Lens：Optical Lens, fireproof and inflame retarding
Material of connecting cable：UL18 AWG, 300V/80°C
Color of connecting cable：Positive: red; negative: white
Max. In series：Based on Power Voltage Supply
Adhesive type：3M adhesive Sponge
Operating temperature：-30~85℃
Storage temperature：-40~100℃
Warranty：5 years
Features:
Simple appearance design without losing stylish and elegant
High efficiency Samsung SMD chip
Reverse voltage, current protection design
Constant current drives a stable product performance
High luminosity , low light decay and even brightness
160° better emit
Chip size：5630/5054
Operating voltage：DC 12V / 24V
Power dissipation：1.2W
Emitting angle：160°
Luminous intensity：100lm（typ.）
Dimension：66*17*8 mm（L x W x H）
LED quantity：3 pcs
Emitting color：Red/Yellow/Blue/Green/White
Waterproofing rate：IP67
IP type：Injection workmanship
Material of main cabinet： ABS, fireproof and inflame retarding
Material of Lens：Optical Lens, fireproof and inflame retarding
Material of connecting cable：UL18 AWG, 300V/80°C
Color of connecting cable：Positive: red; negative: white
Max. In series：Based on Power Voltage Supply
Adhesive type：3M adhesive Sponge
Operating temperature：-30~85℃
Storage temperature：-40~100℃
Warranty：5 years
Features:
Simple appearance design without losing stylish and elegant
High efficiency Samsung SMD chip
Reverse voltage, current protection design
Constant current drives a stable product performance
High luminosity , low light decay and even brightness
160° better emit
