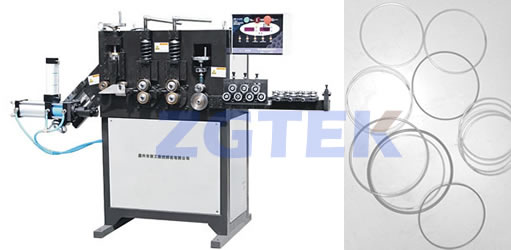

Model: RM-6-310
Input voltage: 220V (2-phase) or customized
Power frequency: 50Hz/60Hz
Rated power: 2KVA
Ring diameter: 70-350mm
Wire thickness: 2.8-5mm
Ring diameter tolerance: 0.16mm
High precision: intelligent "S" shape speed curve, the encoder and the motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
High stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts, never gets less precise due to wear-out.
Input voltage: 220V (2-phase) or customized
Power frequency: 50Hz/60Hz
Rated power: 2KVA
Ring diameter: 70-350mm
Wire thickness: 2.8-5mm
Ring diameter tolerance: 0.16mm
High precision: intelligent "S" shape speed curve, the encoder and the motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
High stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts, never gets less precise due to wear-out.
