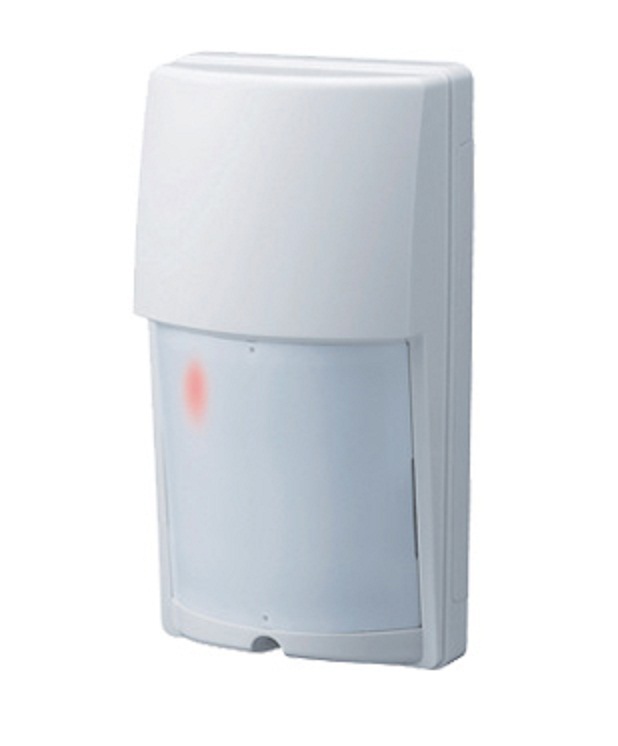

Model :Microwave PIR and Infrared Digital Motion Detector LX-402/802N
Selectable Detection Pattern (Multi Level or Pet Alley)
Selectable Sensitivity : High, Medium or Low
Selectable Pulse Count
Day-Night Mode
Form C Relay Output
IP Rating 54
Easy Wiring
1 Year Warranty



Specification
LX-402 LX-802N
Detection Method PIR PIR
Coverage 40 x 50ft. 120º wide
(12 x 15m) 80 x 6.6ft. long range
(24 x 2m)
Detection Zones Multi-Level : 40 Multi-Level : 12
Detection Zones 1 Pet Alley : 18 Pet Alley : 4
Mounting Height Multi-Level:
8.3ft. (2.5m) max Multi-Level:
8.3ft. (2.5m) max
Mounting Height 1 Pet Alley:
4 - 5ft. (1.2-1.5m) Pet Alley:
4 - 5ft. (1.2-1.5m)
Mounting Wall & Ceiling Wall & Ceiling
Pet Alley Area X X
Masking Plate(Strip) X
Double Conduct Shielding X X
Sensitivity Adjustment H / M / L H / M / L
Temperature Compensation Circuit X X
Pulse Count TEST (1) / 2 TEST (1) / 2
Power Input 10.8 - 13.2V DC 10.8 - 13.2V DC
Current Consumption 25mA max 25mA max
Alarm Output Form C
28V DC 0.2A max. Form C
28V DC 0.2A max.
Tamper Output N.C. N.C.
Alarm Indicator LED X X
Day Night Mode X X
IP Rating IP54 IP54
Operating Temperature -4 - +122 °F
(-20 - +50℃) -4 - +122 °F
(-20 - +50℃)
For residential X X
For light commercial X X
For commercial X
For CCTV Camera X X
