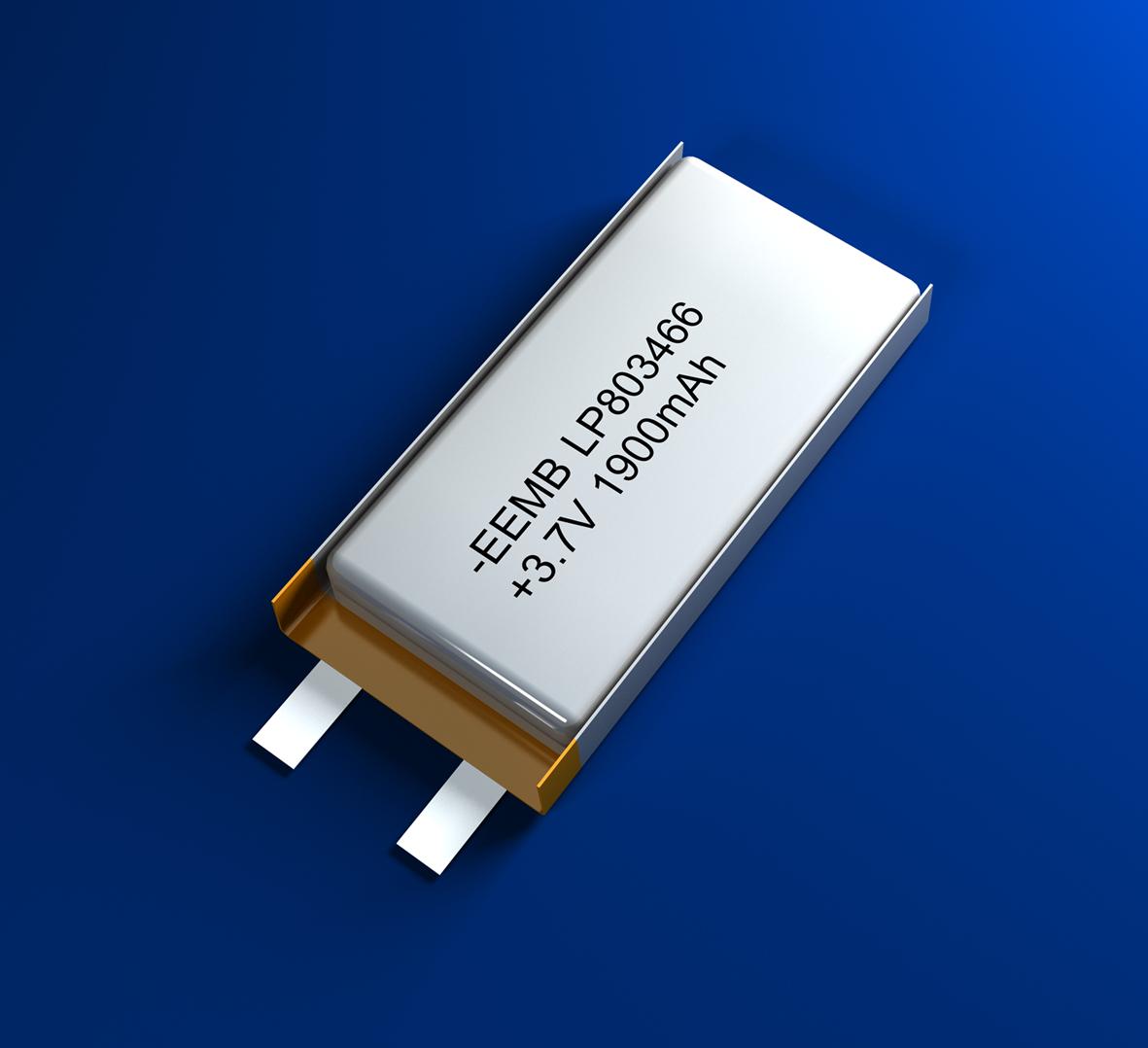

EEMB provides a wide range of lithium polymer batteries with various capacity and dimensions
Equivalent to Varta ; Ultralife; Sanyo; Sony; Renata
Nominal voltage: 3.7V
Rated capacity: 620 to 1,500mAh
Cycle life: greater than or equal to 500 times
Charging voltage: 4.2V
Maximum charging current: 1C mA
Maximum discharging current: 2C mA
Discharging end voltage: 2.75V
Charging temperature: 0 to 45 degrees Celsius
Discharging temperature: -20 to 60 degrees Celsius
Storage temperature: -20 to 45 degrees Celsius
Dimensions: thickness: 4.0 to 9.5mm; width: 34mm; height: 48mm
Thickness could be adjusted while width and height keep the same.
Equivalent to Varta ; Ultralife; Sanyo; Sony; Renata
Nominal voltage: 3.7V
Rated capacity: 620 to 1,500mAh
Cycle life: greater than or equal to 500 times
Charging voltage: 4.2V
Maximum charging current: 1C mA
Maximum discharging current: 2C mA
Discharging end voltage: 2.75V
Charging temperature: 0 to 45 degrees Celsius
Discharging temperature: -20 to 60 degrees Celsius
Storage temperature: -20 to 45 degrees Celsius
Dimensions: thickness: 4.0 to 9.5mm; width: 34mm; height: 48mm
Thickness could be adjusted while width and height keep the same.
Main Products
Li-SOCl2 Battery, Li-MnO2 Battery, Li-ion Battery, Li-Polymer Battery
