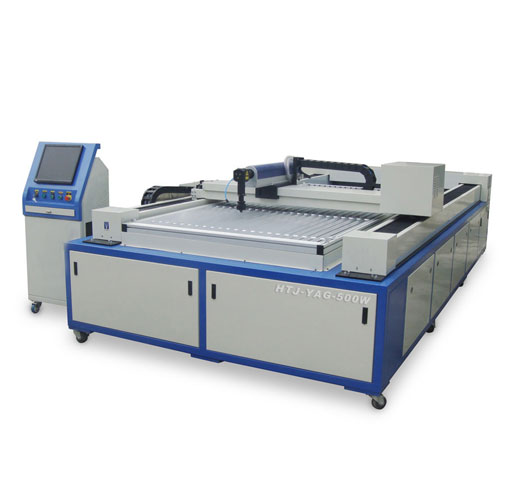

stable laser bed metal cutting machinery
http://www.hotechlaser.com
Features:
1. Reasonable Gantry Structure, stable laser path
2. Mechanical Following laser cutting head imported from USA has high sensitivity and good stability.
3. Power supply controlled by control cabinet, easy to operate
4. Precise and rational design, optical adjustment for easy lamp and rod replacement
5. Japanese Panasonic servo motor
6. The combine of high precision ball screws
7. water chiller.
Number Item Parameter Unit
1 Model HTJ-500
2 Laser wavelength 1064 nm
3 Rated Power 300-500 W
4 Laser power injection 18 KW
5 Water chiller power 5 HP
6 Max. working area 2500*1250 mm
7 X, Y-axis Location accuracy ±0.05 mm
8 X,Y-axis repeat location accuracy ±0.05 mm
9 Fast moving speed 5 m/min
10 Max. cutting speed 2 m/min
11 Min. cutting line width 0.2 mm
12 Applicable material Stainless steel, carbon steel, aluminum, copper, titanium plate, etc.
13 Machine dimension 500mm*500mm*120mm m
Features:
1. Reasonable Gantry Structure, stable laser path
2. Mechanical Following laser cutting head imported from USA has high sensitivity and good stability.
3. Power supply controlled by control cabinet, easy to operate
4. Precise and rational design, optical adjustment for easy lamp and rod replacement
5. Japanese Panasonic servo motor
6. The combine of high precision ball screws
7. water chiller.
Number Item Parameter Unit
1 Model HTJ-500
2 Laser wavelength 1064 nm
3 Rated Power 300-500 W
4 Laser power injection 18 KW
5 Water chiller power 5 HP
6 Max. working area 2500*1250 mm
7 X, Y-axis Location accuracy ±0.05 mm
8 X,Y-axis repeat location accuracy ±0.05 mm
9 Fast moving speed 5 m/min
10 Max. cutting speed 2 m/min
11 Min. cutting line width 0.2 mm
12 Applicable material Stainless steel, carbon steel, aluminum, copper, titanium plate, etc.
13 Machine dimension 500mm*500mm*120mm m
Certificate
- CE
