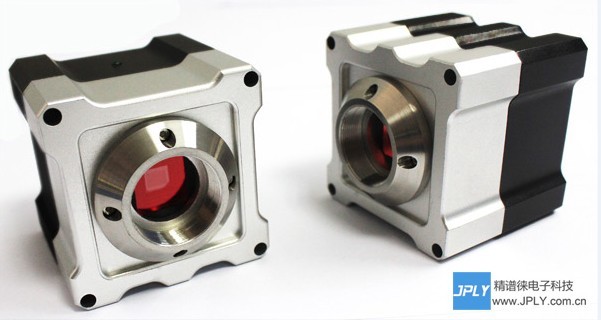

JPLY USB2.0 CCD cameras include general grade and scientific grade. The CCD camera are all based on high performance SONY or KODAK CCD sensors. Thanks to less noise, wide dynamic range, high-definition, and excellent color production, JPLY CCD camera can help the users get high quality images.
specifications :
Model G1UC08C
Digital interface USB2.0
Sensor type Progressive scan CCD
Resolution 3264x2488
Sensor model Sony ICX476
Sensor size 1/1.8"
Pixel size 2.2μmx2.2μm
Max. frame rate 3fps@3264x2488
ADC 12 bit
Dynamic range 50 dB
Exposure time 184us~435ms
Read-out noise 7e-
Lens Mount C/CS mount
Color/Mono Color
IR cut filter integrated in C-mount 18mm x 18mm
Voltage supply USB 2.0 powered
Power consumption approx. 2W
Ambient condition 0°C~60°C
Storage condition 45~85%
Software SpectrumSe image analysis software
SDK available
Operation System Windows 2000/
specifications :
Model G1UC08C
Digital interface USB2.0
Sensor type Progressive scan CCD
Resolution 3264x2488
Sensor model Sony ICX476
Sensor size 1/1.8"
Pixel size 2.2μmx2.2μm
Max. frame rate 3fps@3264x2488
ADC 12 bit
Dynamic range 50 dB
Exposure time 184us~435ms
Read-out noise 7e-
Lens Mount C/CS mount
Color/Mono Color
IR cut filter integrated in C-mount 18mm x 18mm
Voltage supply USB 2.0 powered
Power consumption approx. 2W
Ambient condition 0°C~60°C
Storage condition 45~85%
Software SpectrumSe image analysis software
SDK available
Operation System Windows 2000/
