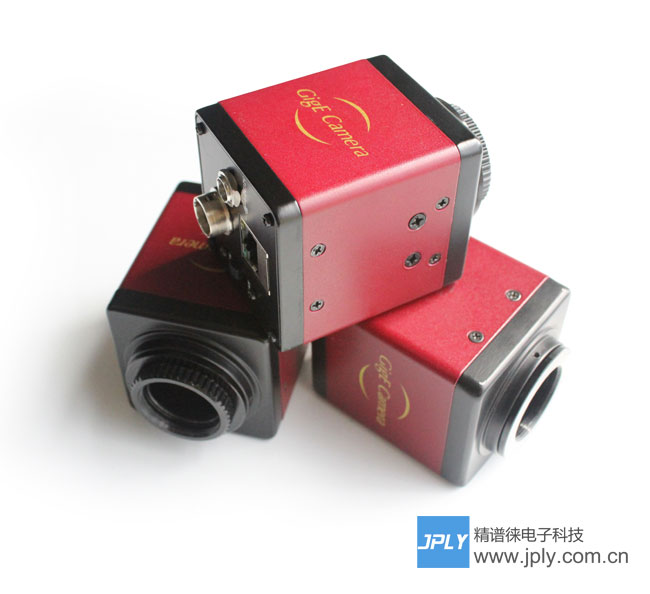

JPLY GigE CMOS cameras G1GD series is a newly developed product, with Gigabit Ethernet interface (high resolution, high speed, long distance transmission). Compared with G1UD series, G1GD series offers higher speed of the preview (up to 130fps@640x480). It is ideal for various applications in industry, especially in complex electromagnetic environment. The G1GD series support multi-camera synchronization, as well as online work without PC connection. It can be used in image processing and analysis by collaborating with the PLC (Programmable Logic Controller). SDK and source code of the Demo are available for secondary development


specifications of product:
Model G1UG05M
Digital interface Gigabit Ethernet
Sensor Type Progressive scan CMOS
Resolution 2592 x 1944
Sensor model MT9P001
Sensor size 1/2.5"
Pixel size 2.2μm x 2.2μm
Max. frame rate 113fps@720x480
ADC 12 bit
Dynamic range 41 dB
Exposure time 0.5ms~40min
Read-out noise 8e-
ROI 4 regions/frame
DSP frequency 400MHz
On board me
