Features:
**These models bring the feature of low noise and large flow rate characters.

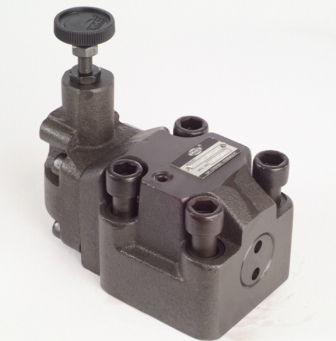

**The design of this pilot operated relief valves on the pressure and flows has been reformed and adjusted, so the operation is sensitive and steady.
**Remote control and unloading are permitted by vent circuit.
Model numbers:
**Gasket type: BHG-06 & BHG-10
Specifications:
**Port Size:
BHG-06: 3/4”
BHG-10: 1-1/4”
**Max. Flow Liter/min
BHG-06: 250
BHG-10: 500
**Weight
BHG-06: 7.8kg
BHG-10: 12.7kg
** Bolt Size
BHG-06: M16x80x4pcs
BHG-10: M20x90x4pcs
**Max. pressure: 350 kgf/cm2
**Pressure Adjustment Range from 7 – 250 (kgf/cm2)
**These models bring the feature of low noise and large flow rate characters.
**The design of this pilot operated relief valves on the pressure and flows has been reformed and adjusted, so the operation is sensitive and steady.
**Remote control and unloading are permitted by vent circuit.
Model numbers:
**Gasket type: BHG-06 & BHG-10
Specifications:
**Port Size:
BHG-06: 3/4”
BHG-10: 1-1/4”
**Max. Flow Liter/min
BHG-06: 250
BHG-10: 500
**Weight
BHG-06: 7.8kg
BHG-10: 12.7kg
** Bolt Size
BHG-06: M16x80x4pcs
BHG-10: M20x90x4pcs
**Max. pressure: 350 kgf/cm2
**Pressure Adjustment Range from 7 – 250 (kgf/cm2)
