Features:

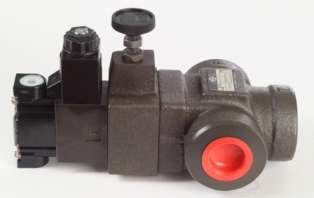

**These valves are a combination of relief valve and solenoid valve. Solenoid valve is directly mounted on the relief valve and connected with the relief valve vent; therefore, piping between two valves is eliminated.
**By checking on an electrical signal to the solenoid, or connecting pilot relief valves to the solenoid valve ports could unloaded pump pressure easily. .
**The structure of this type of valve is simple, and is normally used for general traditional machine.
Model numbers:
Thread type: BST-06 & BST-10
Gasket type: BSG-03 & BSG-06
Specifications:
**Port Size:
BSG-03: 3/8”
BSG-06 & BST-06: 3/4”
BST-10: 1-1/4”
**Max. Flow Liter/min
BSG-03: 60
BSG-06 & BST-06: 200
BST-10: 400
**Weight
BSG-03: 5.1kg
BSG-06: 7kg
BST-06: 4.4kg
BST-10: 7.1kg
** Bolt Size
BSG-03: M12x70x2pcs & M12x90x2pcs
BSG-06: M16x60x2pcs & M16x80x2pcs
**Max. pressure: 250 kgf/cm2
**Pressure Adjustment Range from 7 – 250 (kgf/cm2)
**These valves are a combination of relief valve and solenoid valve. Solenoid valve is directly mounted on the relief valve and connected with the relief valve vent; therefore, piping between two valves is eliminated.
**By checking on an electrical signal to the solenoid, or connecting pilot relief valves to the solenoid valve ports could unloaded pump pressure easily. .
**The structure of this type of valve is simple, and is normally used for general traditional machine.
Model numbers:
Thread type: BST-06 & BST-10
Gasket type: BSG-03 & BSG-06
Specifications:
**Port Size:
BSG-03: 3/8”
BSG-06 & BST-06: 3/4”
BST-10: 1-1/4”
**Max. Flow Liter/min
BSG-03: 60
BSG-06 & BST-06: 200
BST-10: 400
**Weight
BSG-03: 5.1kg
BSG-06: 7kg
BST-06: 4.4kg
BST-10: 7.1kg
** Bolt Size
BSG-03: M12x70x2pcs & M12x90x2pcs
BSG-06: M16x60x2pcs & M16x80x2pcs
**Max. pressure: 250 kgf/cm2
**Pressure Adjustment Range from 7 – 250 (kgf/cm2)
