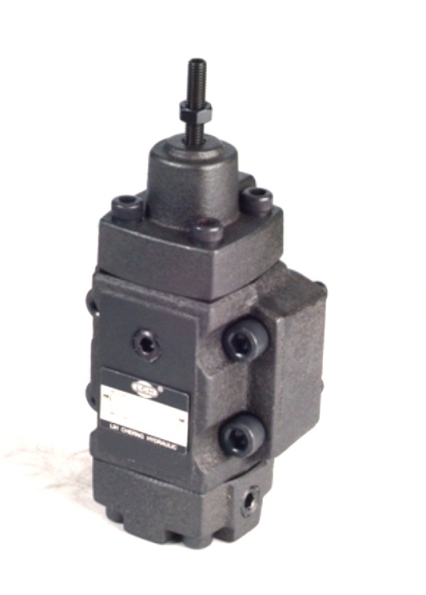

Features:
**These valves are used for acting pilot pressure and drainage, thus, it achieves the features of sequence control, pressure releasing, control counter-balancing control and unloading control. All features are operated by a pressure rise in the circuit, sensed either internally or remotely.
**It comes without check valves. These valves including various features from various types of valve including sequence, unloading and low pressure relief valves.
**Thread type or Gasket type are available
Model numbers:
Thread type: HT-03, HT-06 & HT-10
Gasket type: HG-03, HG-06 & HG-10
Specifications:
**Port Size:
HT-03 & HG-03: 3/8”
HT-06 & HG-06: 3/4”
HT-10 & HG-10: 1-1/4”
**Max. Flow Liter/min
HT-03 & HG-03: 50
HT-06 & HG-06: 125
HT-10 & HG-10: 250
**Weight
HT-03: 4.0kg
HT-06: 6.5kg
HT-10: 12.3kg
HG-03: 4.4kg
HG-06: 6.6kg
HG-10: 10.7kg
** Bolt Size
HT-03 & HG-03: M10x55x4pcs
HT-06 & HG-06: M10x55x4pcs
HT-10 & HG-10: M10x55x6pcs
**Max. pressure: 250 kgf/cm2
**Pressure Adjustment Range from 18 – 210 (kgf/cm2)
**These valves are used for acting pilot pressure and drainage, thus, it achieves the features of sequence control, pressure releasing, control counter-balancing control and unloading control. All features are operated by a pressure rise in the circuit, sensed either internally or remotely.
**It comes without check valves. These valves including various features from various types of valve including sequence, unloading and low pressure relief valves.
**Thread type or Gasket type are available
Model numbers:
Thread type: HT-03, HT-06 & HT-10
Gasket type: HG-03, HG-06 & HG-10
Specifications:
**Port Size:
HT-03 & HG-03: 3/8”
HT-06 & HG-06: 3/4”
HT-10 & HG-10: 1-1/4”
**Max. Flow Liter/min
HT-03 & HG-03: 50
HT-06 & HG-06: 125
HT-10 & HG-10: 250
**Weight
HT-03: 4.0kg
HT-06: 6.5kg
HT-10: 12.3kg
HG-03: 4.4kg
HG-06: 6.6kg
HG-10: 10.7kg
** Bolt Size
HT-03 & HG-03: M10x55x4pcs
HT-06 & HG-06: M10x55x4pcs
HT-10 & HG-10: M10x55x6pcs
**Max. pressure: 250 kgf/cm2
**Pressure Adjustment Range from 18 – 210 (kgf/cm2)
