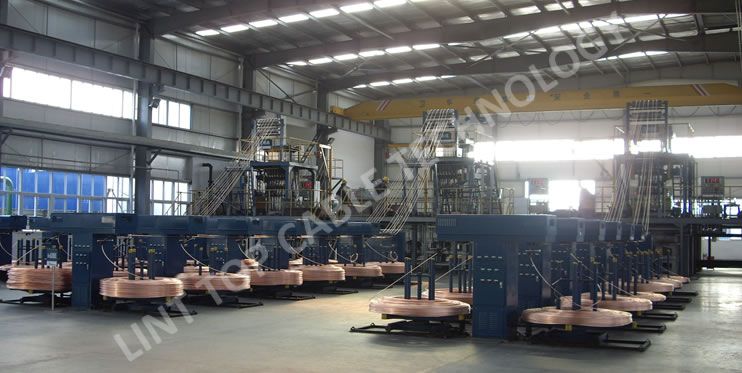

Upward Continuous Casting System for Oxgen-free Copper Rod
Upward Continuous Casting System for Oxgen-free Copper Rod
Product ID: Production facility
Send Inquiry
1. Features of upward continuous casting machine for oxygen-free copper rod
Upcast system produces top quality rod for the wire and cable industry(including feeding the Conform line for copper rectangular wire production.), with the outstanding performance of high electrical conductivity and good draw ability.Our upward continuous casting line has the main advantages of low investment, good product quality, pollution free and easy operation. Different line configurations of single, double, tripe furnaces are available for production capacity range from 1,500 to 10,000 tons per year. Different rod diameters can be chosen: 8mm, 17mm, 20mm and 25mm, etc. It is tailor-made to match the needs of each specific customer.
2. Performance of copper rod produced by upward continuous casting machine(casting rod is made of #1 cathode copper)
Density ~ 8.9 kg/dm3
Resistance in soft condition: ≤ 0.01724Ω. mm2/m
Elongation percentage ≥ 37%
Tensile strength ≥ 170N/MM2
Oxygen content ≤ 10PPM
Min wire size draw to 0.12mm
Note: When casting rod is made of bright and used electric wire (cable) or bright copper scrapThe quality of copper rod is decided by the raw material
3. Technical parameters of upward continuous casting machine for oxygen-free copper rod
Modle Nos of casting head Specification Annual output Stove pattern Continuous casting pattern Installed capacity Electricity consumption
SL04-Q1-D-A 4 12.5-20 1500 single stove single pole 170 100
SL06-Q2-D-A 6 14.4-12.5 2500 double stoves single pole 330 150
SL06-Q2-D-A 6 17-20 3000 double stoves single pole 330 180
SL08-Q3-D-A 8 14.4-17 4000 triple stoves single pole 480 250
SL08-Q3-D-A 8 17-20 5000 triple stoves single pole 480 270
SL10-Q3-D-A 10 14.4-17 5000 triple stoves single pole 480 270
SL06-Q2-S-A-8 6 8 3000 double stoves four pole 330 180
SL06-Q2-S-B-8 6 8 3000 double stoves four pole 330 180
SL10-QL-D-A 10 14.4-20 5000 triple stoves four pole 480 270
SL10-QL-D-A 10 14.4-20 6000 triple stoves four pole 480 290
SL10-QL-S-A-8 10 8 5000 triple stoves four pole 480 270
SL10-QL-S-B-8 10 8 5000 triple stoves four pole 480 270
SL12-QL-S-A-8 12 8 6000 triple stoves four pole 480 290
SL12-QL-S-B-8 12 8 6000 triple stoves four pole 980 290
SL12-QF-S-A 12 17-20 8000 triple stoves four pole 950 480
SL16-QH-S-A 16 17-20 10000 triple stoves four pole 950 540
SL16-QF-S-B-8 16 8 8000 triple stoves four pole 950 480
SL20-QH-S-B-8 20 8 10000 triple stoves four pole 950 540
Upcast system produces top quality rod for the wire and cable industry(including feeding the Conform line for copper rectangular wire production.), with the outstanding performance of high electrical conductivity and good draw ability.Our upward continuous casting line has the main advantages of low investment, good product quality, pollution free and easy operation. Different line configurations of single, double, tripe furnaces are available for production capacity range from 1,500 to 10,000 tons per year. Different rod diameters can be chosen: 8mm, 17mm, 20mm and 25mm, etc. It is tailor-made to match the needs of each specific customer.
2. Performance of copper rod produced by upward continuous casting machine(casting rod is made of #1 cathode copper)
Density ~ 8.9 kg/dm3
Resistance in soft condition: ≤ 0.01724Ω. mm2/m
Elongation percentage ≥ 37%
Tensile strength ≥ 170N/MM2
Oxygen content ≤ 10PPM
Min wire size draw to 0.12mm
Note: When casting rod is made of bright and used electric wire (cable) or bright copper scrapThe quality of copper rod is decided by the raw material
3. Technical parameters of upward continuous casting machine for oxygen-free copper rod
Modle Nos of casting head Specification Annual output Stove pattern Continuous casting pattern Installed capacity Electricity consumption
SL04-Q1-D-A 4 12.5-20 1500 single stove single pole 170 100
SL06-Q2-D-A 6 14.4-12.5 2500 double stoves single pole 330 150
SL06-Q2-D-A 6 17-20 3000 double stoves single pole 330 180
SL08-Q3-D-A 8 14.4-17 4000 triple stoves single pole 480 250
SL08-Q3-D-A 8 17-20 5000 triple stoves single pole 480 270
SL10-Q3-D-A 10 14.4-17 5000 triple stoves single pole 480 270
SL06-Q2-S-A-8 6 8 3000 double stoves four pole 330 180
SL06-Q2-S-B-8 6 8 3000 double stoves four pole 330 180
SL10-QL-D-A 10 14.4-20 5000 triple stoves four pole 480 270
SL10-QL-D-A 10 14.4-20 6000 triple stoves four pole 480 290
SL10-QL-S-A-8 10 8 5000 triple stoves four pole 480 270
SL10-QL-S-B-8 10 8 5000 triple stoves four pole 480 270
SL12-QL-S-A-8 12 8 6000 triple stoves four pole 480 290
SL12-QL-S-B-8 12 8 6000 triple stoves four pole 980 290
SL12-QF-S-A 12 17-20 8000 triple stoves four pole 950 480
SL16-QH-S-A 16 17-20 10000 triple stoves four pole 950 540
SL16-QF-S-B-8 16 8 8000 triple stoves four pole 950 480
SL20-QH-S-B-8 20 8 10000 triple stoves four pole 950 540
