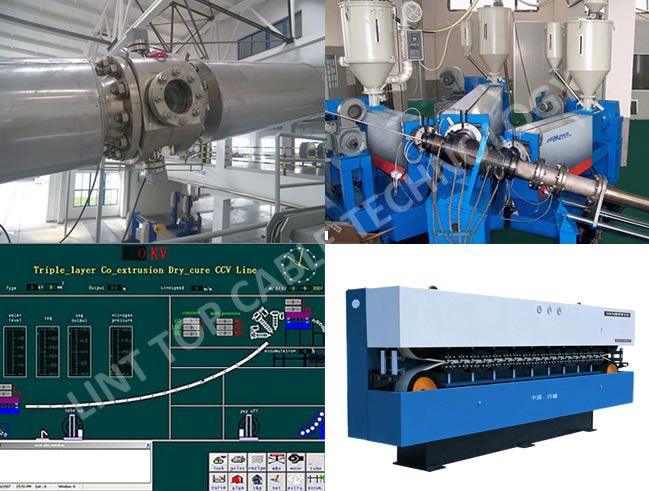

Triple-layer Co-extrusion Dry-cure CCVLines(Dry-cure Cross)
Product ID: Production facility
Send Inquiry
Features of Triple-layer co-extrusion dry-cure CCV lines(6-35KV, 35KV-123KV)
1.Controlled by computer and operated by touch srceen, communicates with profibus.
2.Adopt ¢65 conductor shield, ¢150 insulation, ¢90 insulation shield, triple-layer co-extrusion.
3.Controlled by field density,shifting phase trigger function of tubes.
4.The specially designed triple-layer co-extrusion crosshead ensure the joint speed raising not to eccentric after modulating with low speed and can made finished cable after 30-40m.
5.The man-machine communicate menu can deposited the technological parameter to use at any moment.
6. Sag control. The working principle is of contactless type with the features of narrow band emission, strong signal, weak signal receiving and high anti-interference ability, used widely DC speed governing and AC frequency conversion control.
Technical parameters of of Triple-layer co-extrusion dry-cure CCV lines (6-35KV, 35KV-123KV)
Voltage class XLPE: 6-35KV XLPE: 35-132KV
Conductor sections Copper: 35-630mm2 Copper: 50-1600mm2
Aluminium: 50-800mm2 Aluminium: 70-1600mm2
Max. Cable weight 10kg/m 16kg/m
Max. diameter Ф75mm Ф95mm
Tube layout Half-catenary Half-catenary
Nitrogen Pressure: 2.0-2.5Mpa
Purity: 99.5% Pressure: 2.0-2.5Mpa
Purity: 99.5%
Consumption Standard atmoshpencpressure
Volume of nitrogen tank: 5m3 Standard atmoshpencpressure
Volume of nitrogen tank: 5m3
Cooling water Pressure: 0.2-0.6Mpa
Circulation: 25m3/h Pressure: 0.2-0.6Mpa
Circulation: 25m3/h
Compressed air Pressure: 0.6-0.8Mpa
Normal dosage: 0.8m3/h Pressure: 0.6-0.8Mpa
Normal dosage: 0.8m3/h
Installed capacity 750KVA-930KVA 900KVA-1080KVA
Total weight 80t-90t 100t
Our 132KV CCV line uses upper and lower rotating caterpillars, ETH avoiding eccentricity, advanced international technology based on our 35KV CCV line and our abundant experience in CCV line industry to keep the line advanced, high efficient and running stable.
1.Controlled by computer and operated by touch srceen, communicates with profibus.
2.Adopt ¢65 conductor shield, ¢150 insulation, ¢90 insulation shield, triple-layer co-extrusion.
3.Controlled by field density,shifting phase trigger function of tubes.
4.The specially designed triple-layer co-extrusion crosshead ensure the joint speed raising not to eccentric after modulating with low speed and can made finished cable after 30-40m.
5.The man-machine communicate menu can deposited the technological parameter to use at any moment.
6. Sag control. The working principle is of contactless type with the features of narrow band emission, strong signal, weak signal receiving and high anti-interference ability, used widely DC speed governing and AC frequency conversion control.
Technical parameters of of Triple-layer co-extrusion dry-cure CCV lines (6-35KV, 35KV-123KV)
Voltage class XLPE: 6-35KV XLPE: 35-132KV
Conductor sections Copper: 35-630mm2 Copper: 50-1600mm2
Aluminium: 50-800mm2 Aluminium: 70-1600mm2
Max. Cable weight 10kg/m 16kg/m
Max. diameter Ф75mm Ф95mm
Tube layout Half-catenary Half-catenary
Nitrogen Pressure: 2.0-2.5Mpa
Purity: 99.5% Pressure: 2.0-2.5Mpa
Purity: 99.5%
Consumption Standard atmoshpencpressure
Volume of nitrogen tank: 5m3 Standard atmoshpencpressure
Volume of nitrogen tank: 5m3
Cooling water Pressure: 0.2-0.6Mpa
Circulation: 25m3/h Pressure: 0.2-0.6Mpa
Circulation: 25m3/h
Compressed air Pressure: 0.6-0.8Mpa
Normal dosage: 0.8m3/h Pressure: 0.6-0.8Mpa
Normal dosage: 0.8m3/h
Installed capacity 750KVA-930KVA 900KVA-1080KVA
Total weight 80t-90t 100t
Our 132KV CCV line uses upper and lower rotating caterpillars, ETH avoiding eccentricity, advanced international technology based on our 35KV CCV line and our abundant experience in CCV line industry to keep the line advanced, high efficient and running stable.
