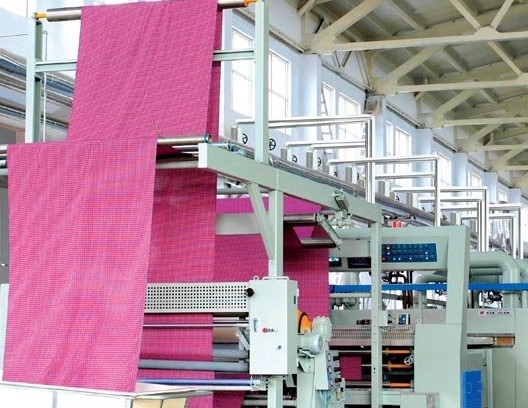

This stenter is designed for stentering or thermosetting woven or knitted fabrics (70-500g/m2) made of cotton,polyester ect.
1. Process Flow
Heat-setting stenter:Open-width feeding→ screw expanding → centering →automatic weft straightening(buyers supply, leave space for this device) →lower overfeeding → mechanical weft straightening →screw expanding → upper overfeeding → four- finger selvedge uncurling →infra-red edge controlling →pinning→ stentering or thermosetting→ air cooling →depinning → water drum cooling →plaiting
3. Main specifications:
3.1 Type Hot air circulation, single layer horizontal

3.2 Hand: Left or right hand

3.3 Nominal Widthmm 2000

3.4 Adjusting Widthmm 700 - 1800

3.5 Nominal Speed 10-100m/min

3.6 Overfeeding Range -10%+30%

3.7 Temperature in Chamber 100220

3.8 Heat Source thermo oil

3.9 Fabric Held by Pins(climb type)

3.10 Delivering Plaiting

3.11 Edge controlling: Red- infrared edging sensor

3.12 Guide rail non lubricated steel tracks

3.13 No. of chamber 8 chambers (each is 3 meters long
3.14 With Seimens PLC and Fuji inverters for main drive, including chain driving, padding, overfeeding.

3.15 Air-conditioned control cabinets suitable to work under 55

3.16 With two water cooling cylinders.

3.17 No control bridge. With touch screen control.

3.18 Cables supplied from control cabinets to machine.

3.19 With TV, camera, and intercom system.
