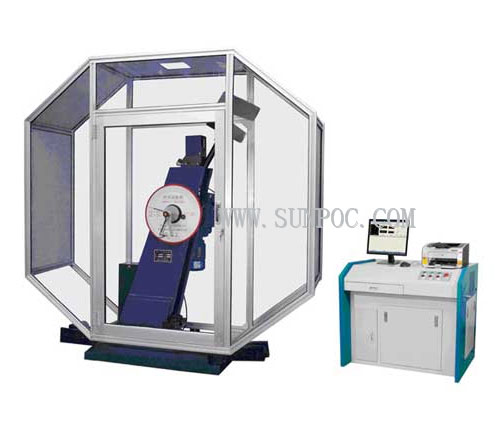

JBW-300H series intelligent type impact tester
Technical Characteristics:
1. A pedestal of a mainframe stand and an upright post are integrally designed, and are cast and machined integrally, which ensure good rigidity and improve the stability of the test.
2. A pendulum shaft adopts a freely supported beam mode for bearing; and the radial load of the bearing is reasonably distributed, which greatly reduces the energy loss brought by bearing friction.
3. The tester adopts a double-stage standard reducing motor for lifting the hammer; and a pendulum hanging device adopts hydraulic buffer and has smooth pendulum hanging.
4. The pendulum hammer is designed to be a circular pendulum body, which ensures the accuracy of the striking center and the precision of pendulum hammer torque.
5. An impact cutter is fixedly mounted by a bolt, and simple and convenient to replace.
6. The tester is equipped with a safety protection pin and a fully-closed protective cover.
7. The tester is controlled by a microcomputer and completes the whole process of pendulum taking, impacting, automatic pendulum raising and re-impacting for several tests according to instructions.
8. The tester is provided with a force transducer and an angle displacement transducer and has the functions of high-speed sampling, storage and calculation.
9. The microcomputer can obtain a force-time curve, a displacement-time curve, an energy-time curve, a force-displacement curve, an energy-displacement curve and other curves.
10. The tester can provide a plurality of characteristic values of impact speed, impact time, impact energy, absorbed energy, displacement, crack formation energy, crack expansion energy, yield strength, yield time, yield displacement, yield energy, maximal force, time in maximal force, displacement in maximal force, energy in maximal force, unstable crack expansion initial force, unstable crack expansion terminal force, unstable crack expansion terminal displacement, unstable crack expansion initial energy and unstable crack expansion terminal energy.
Specification:
Model
JBW-150H
JBW-300H
JBW-450H
JBW-600H
JBW-750H
Impact Energy
150J
300J
450J
600J
750J
Scale Range
0-150J
0-300J
0-450J
0-600J
0-750J
resolution
1J
2J
3J
4J
5J
Distance between Axis of Pendulum Shaft and Striking Center
750mm
Maximal Impact Speed
5.2m/s
Span of Test Sample Support
40 +0.2mm
Radius of Circular Arc in the End Part of the Test Sample Support
R1+0.5mm
Radius of Circular Arc of Impact Blade
R2.25, R8
Included Angle of Impact Cutter
30°+±1°
Pre-raising Angle of the Pendulum Hammer
150°
Thickness of Impact Cutter
16 mm
Specification of Test Sample
10×10×55 mm
Precision of Force Transducer
≤±1%FS
Resolution of Angular Displacement Transducer
0.1°
Impact test POWER
AC 380V 50Hz
Technical Characteristics:
1. A pedestal of a mainframe stand and an upright post are integrally designed, and are cast and machined integrally, which ensure good rigidity and improve the stability of the test.
2. A pendulum shaft adopts a freely supported beam mode for bearing; and the radial load of the bearing is reasonably distributed, which greatly reduces the energy loss brought by bearing friction.
3. The tester adopts a double-stage standard reducing motor for lifting the hammer; and a pendulum hanging device adopts hydraulic buffer and has smooth pendulum hanging.
4. The pendulum hammer is designed to be a circular pendulum body, which ensures the accuracy of the striking center and the precision of pendulum hammer torque.
5. An impact cutter is fixedly mounted by a bolt, and simple and convenient to replace.
6. The tester is equipped with a safety protection pin and a fully-closed protective cover.
7. The tester is controlled by a microcomputer and completes the whole process of pendulum taking, impacting, automatic pendulum raising and re-impacting for several tests according to instructions.
8. The tester is provided with a force transducer and an angle displacement transducer and has the functions of high-speed sampling, storage and calculation.
9. The microcomputer can obtain a force-time curve, a displacement-time curve, an energy-time curve, a force-displacement curve, an energy-displacement curve and other curves.
10. The tester can provide a plurality of characteristic values of impact speed, impact time, impact energy, absorbed energy, displacement, crack formation energy, crack expansion energy, yield strength, yield time, yield displacement, yield energy, maximal force, time in maximal force, displacement in maximal force, energy in maximal force, unstable crack expansion initial force, unstable crack expansion terminal force, unstable crack expansion terminal displacement, unstable crack expansion initial energy and unstable crack expansion terminal energy.
Specification:
Model
JBW-150H
JBW-300H
JBW-450H
JBW-600H
JBW-750H
Impact Energy
150J
300J
450J
600J
750J
Scale Range
0-150J
0-300J
0-450J
0-600J
0-750J
resolution
1J
2J
3J
4J
5J
Distance between Axis of Pendulum Shaft and Striking Center
750mm
Maximal Impact Speed
5.2m/s
Span of Test Sample Support
40 +0.2mm
Radius of Circular Arc in the End Part of the Test Sample Support
R1+0.5mm
Radius of Circular Arc of Impact Blade
R2.25, R8
Included Angle of Impact Cutter
30°+±1°
Pre-raising Angle of the Pendulum Hammer
150°
Thickness of Impact Cutter
16 mm
Specification of Test Sample
10×10×55 mm
Precision of Force Transducer
≤±1%FS
Resolution of Angular Displacement Transducer
0.1°
Impact test POWER
AC 380V 50Hz
