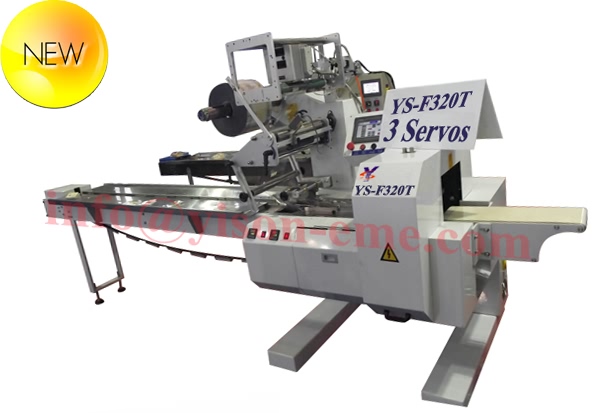

This machine is suitable for packing instant noodle, biscuit, ice cream, ice candy, chewing-gum, chocolate, handkerchief, napkin, dry battery cell, fruit parfait, pine apple cake, general cake, of bar and various round, square, or rectangles which are profile solid products.
Features:
1. Three Servo controlled: One for Product feeding, one for Film Delivering and the last for Cutting.
2. NO product, No bag
3. No cutting products by Jaws.
4. Touch Screen Controlled, alarms showed clear.
5. Independent PID Temperature controlled, accuracy and stable.
6. Simple Driving system, convenient mainatenanace.
7. Gusseted bag device available.
Options: Printer / Gas Charging Device/ Feeder / Tidier
Technical Data:
Width of film ≤ 320mm
Thickness of film 40-70um
Dimension of film roll OUTER Φ ≤ 300mm ,INNER ≤ Φ 75
Bag size (80-6000)*(50-150)*(3-55) mm
Speed 1-200 bags/min (according to products size)
Features:
1. Three Servo controlled: One for Product feeding, one for Film Delivering and the last for Cutting.
2. NO product, No bag
3. No cutting products by Jaws.
4. Touch Screen Controlled, alarms showed clear.
5. Independent PID Temperature controlled, accuracy and stable.
6. Simple Driving system, convenient mainatenanace.
7. Gusseted bag device available.
Options: Printer / Gas Charging Device/ Feeder / Tidier
Technical Data:
Width of film ≤ 320mm
Thickness of film 40-70um
Dimension of film roll OUTER Φ ≤ 300mm ,INNER ≤ Φ 75
Bag size (80-6000)*(50-150)*(3-55) mm
Speed 1-200 bags/min (according to products size)
