Coiled Tubing Pressure Control Equipment
Coiled Tubing PCE
Coiled Tubing PCE is applied for coiled tubing Workover, Flushing, Subsidiary cable Logging and so on.
Simple structure& Easy of use and fix are mainly characteristic. It is small and light, but could work under high pressure and H2S conditions.

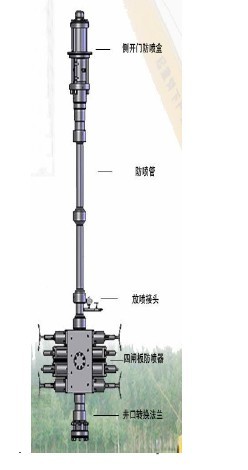

Coiled Tubing PCE includes of 5 mainly parts, such as Side Door Stripper, Lubricator, Hydraulic Quad Ram BOP and Wellhead Crossover Flange, Blowout Sub.
Technical parameters:
1. Sealing Tubing OD:
1" , 1 1/4" , 1 1/2" , 1 3/4" , 2" , 2 3/8" , 2 7/8" , 3 1/2"
2. ID of BOP and Lubricator:
62mm, 76mm, 89mm, 101.6mm, 127mm, 180mm
3. Working Pressure:
21MPa, 35MPa, 70MPa, 105MPa
4. Connection Thread:
According to requirement, UNION, Flange etc.
5. Working circumstance:
Crude Oil, gas and water with H2S (H2S service standard: EE).
6. Working Temperature:-29°C~+121°C
Coiled Tubing PCE is applied for coiled tubing Workover, Flushing, Subsidiary cable Logging and so on.
Simple structure& Easy of use and fix are mainly characteristic. It is small and light, but could work under high pressure and H2S conditions.
Coiled Tubing PCE includes of 5 mainly parts, such as Side Door Stripper, Lubricator, Hydraulic Quad Ram BOP and Wellhead Crossover Flange, Blowout Sub.
Technical parameters:
1. Sealing Tubing OD:
1" , 1 1/4" , 1 1/2" , 1 3/4" , 2" , 2 3/8" , 2 7/8" , 3 1/2"
2. ID of BOP and Lubricator:
62mm, 76mm, 89mm, 101.6mm, 127mm, 180mm
3. Working Pressure:
21MPa, 35MPa, 70MPa, 105MPa
4. Connection Thread:
According to requirement, UNION, Flange etc.
5. Working circumstance:
Crude Oil, gas and water with H2S (H2S service standard: EE).
6. Working Temperature:-29°C~+121°C
Certificate
- API 6A
- API 16A
- ISO19001
- ISO28001
- ISO14001
