Introduction

Aplus Industrial Open Frame LCD Monitor series offers flexible options for TFT LCD Panel, touchscreen, signal interface and bracket mounting. The series with standard integrated metal housing, is ideal mounting silution for different embedded application.

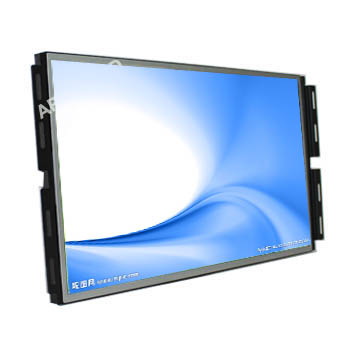

AP-21OPLHT1-R is 21.5 Open Frame monitor with Resstive touch screen, with super slim design of 28mm thickness, support 21.5 250nits, 1920x1080 full HD resolution TFT LCD Screen, with 0~50 °C operating temperature range.
Specifications

Model No.
AP-21OPLHT1-R

Description
21.5 Open Frame LCD Monitor with Resistive touch screen, TFT LCD 250nits, 10920x1080 pixels

Size
21.5’’

Display Area (mm)
476.64 (H)x 268.11 (V) mm

Pixel Pitch (mm)
248.25(H) x 248.25(V)

Resolution
1920X1080

Brightness
250 cd/m2

Contrast Ratio
1000 : 1(typ)

Backlight
LED Backlight

Viewing Angle
170(H): 160(V)

Display Colors
16.7M colors

Dimens
