Aplus Industrial Open Frame LCD Monitor series offers flexible options for TFT LCD Panel, touchscreen, signal interface and bracket mounting. The series with standard integrated metal housing, is ideal mounting solution for different embedded application.

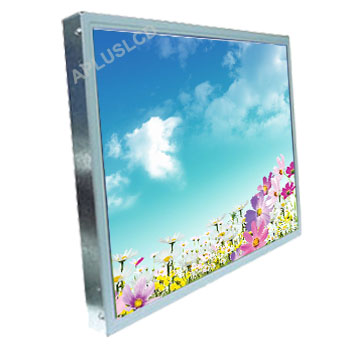

AP-15OPLHT3-I is 15 Open Frame monitor with IR touch screen, with super slim design, support 15 250nits, 1024x768 resolution TFT LCD Screen, with 0~50 °C operating temperature range.
Specifications

Model No.
AP-15OPLHT3-I

Description
15 Open Frame LCD Monitor with IR touch screen, TFT LCD 250nits, 1024x768 pixels

Size
15’’

Display Area (mm)
304.12 (H)x 228.09 (V) mm

Pixel Pitch (mm)
0.297(H) x 0.297(V)

Resolution
1024X768

Brightness
250 cd/m2

Contrast Ratio
400 : 1(typ)

Backlight
CCFL Backlight

Viewing Angle
120(H): 100(V)

Display Colors
262k colors

Dimension(VxHxT)
329x256x29

Touch Screen

Type
IR touch

To
