Introduction

Aplus Industrial Open Frame LCD Monut series offers flexible options for TFT LCD Panel, touchscreen, signal interface and bracket mounting. The series with standard integrated metal housing,with mounting bracket for easy installation, support chassis mounting and VESA mount, are ideal mounting silution for different embedded application.

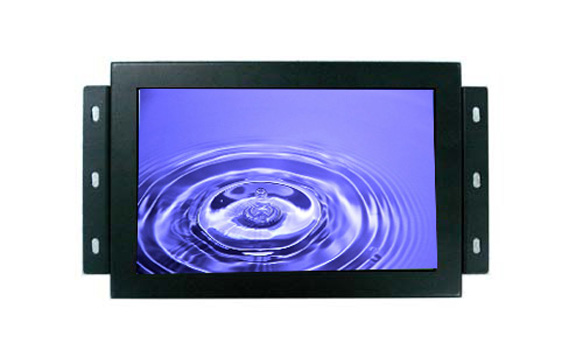

AP-07OPLHT1-R is 7 Open Frame monitor with 4 wire resistive touch screen, with chassis enclousre design, support 7 300nits, 800x480 resolution TFT LCD Screen, with 0~50 °C operating temperature range.
Specifications

Model No.
AP-07OPLHT1-R

Description
7 Open Frame LCD Monitor with 4 Wire resistive touch screen, TFT LCD 300nits, 800x480 pixels

Size
7’’

Display Area (mm)
152.4 (H)x 91.44 (V) mm

Pixel Pitch (mm)
0.0635(H) x 0.1905(V)

Resolution
800x480

Brightness
300 cd/m2

Contrast Ratio
500 : 1(typ)

Backlight
CCFL Backlight

Viewing Angle
140(
