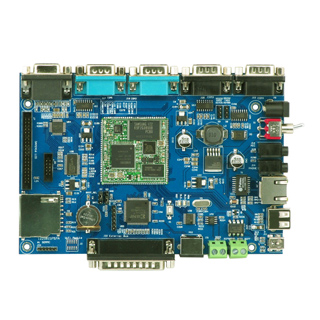

KIT2416
Summary
KIT2416 development board is developed based on Samsung ARM9 S3C2416 microprocessor, which is designed to provide a cost-effective Application Processor solution for Netbook, Control terminal, environmental instrumentation and POS.
1 Overview
KIT2416 ARM9 development board is developed by Boardcon, based on Samsung ARM9 S3C2416 microprocessor. The ARM chip S3C2416 can take the place of S3C2440A. It is with a clock speed of 400MHz. KIT2416 development board is using the structure of CPU board and mother board. The CPU board integrated S3C2416 ARM9 CPU, 64MB Mobile DDR2 SDRAM, 256MB NAND Flash, 10/100M Ethernet control chip SMSC LAN9221 and AC97 voice control chip WM8731. Its seamless welded on the mother board directly. The mother board is customizable. It integrates very rich interface resources for redevelopment, these resources include: VGA interface, ps/2 keyboard interface, RS232, RS485, CAN bus, 100M Ethernet RJ45 interface, LVDS interface, TFT-LCD interface, parallel printer port and digital I/O interface and so on. Besides, the drivers and the development cases in WinCE6.0 and Linux 2.6 help users with updating and replacing products quickly. The development board has passed the high and low temperature testing, to suitable for a variety of industrial application under the complex environment.
2 Highlight
* CPU: Samsung ARM926EJS S3C2416, 400MHz industrial frequency
* 64MB DDR2 SDRAM
* 256MB NAND Flash
* Build-in 2D graphics acceleration video card, the resolution is up to 1024 * 768
* Support 4 RS232 DB9 Ports, 1 RS485 Port(optional)
* Support 4-wire touch screen
* Support PS/2 keyboard (optional)
* 1 parallel printer port (optional)
* 1 CAN 2.0 bus interface(optional)
* 1 SD 2.0 and 1-way MMC4.0
* Support booting from NAND Flash and SD
* Integrated package service( development board + data +LCD)
* Operating System: WinCE6.0 and Linux 2.6
* Module support: Printer, WIFI, VGA
3 About Design Services
We can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
KIT2416 development board is developed based on Samsung ARM9 S3C2416 microprocessor, which is designed to provide a cost-effective Application Processor solution for Netbook, Control terminal, environmental instrumentation and POS.
1 Overview
KIT2416 ARM9 development board is developed by Boardcon, based on Samsung ARM9 S3C2416 microprocessor. The ARM chip S3C2416 can take the place of S3C2440A. It is with a clock speed of 400MHz. KIT2416 development board is using the structure of CPU board and mother board. The CPU board integrated S3C2416 ARM9 CPU, 64MB Mobile DDR2 SDRAM, 256MB NAND Flash, 10/100M Ethernet control chip SMSC LAN9221 and AC97 voice control chip WM8731. Its seamless welded on the mother board directly. The mother board is customizable. It integrates very rich interface resources for redevelopment, these resources include: VGA interface, ps/2 keyboard interface, RS232, RS485, CAN bus, 100M Ethernet RJ45 interface, LVDS interface, TFT-LCD interface, parallel printer port and digital I/O interface and so on. Besides, the drivers and the development cases in WinCE6.0 and Linux 2.6 help users with updating and replacing products quickly. The development board has passed the high and low temperature testing, to suitable for a variety of industrial application under the complex environment.
2 Highlight
* CPU: Samsung ARM926EJS S3C2416, 400MHz industrial frequency
* 64MB DDR2 SDRAM
* 256MB NAND Flash
* Build-in 2D graphics acceleration video card, the resolution is up to 1024 * 768
* Support 4 RS232 DB9 Ports, 1 RS485 Port(optional)
* Support 4-wire touch screen
* Support PS/2 keyboard (optional)
* 1 parallel printer port (optional)
* 1 CAN 2.0 bus interface(optional)
* 1 SD 2.0 and 1-way MMC4.0
* Support booting from NAND Flash and SD
* Integrated package service( development board + data +LCD)
* Operating System: WinCE6.0 and Linux 2.6
* Module support: Printer, WIFI, VGA
3 About Design Services
We can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
