Bronze Safety Valve

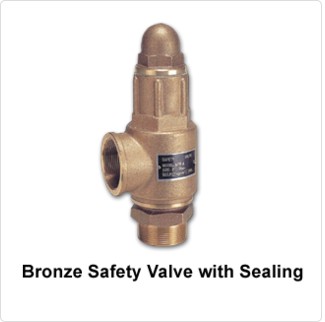

Bronze Safety Valve with Sealing
SIZE A B C D E F G H Lift A1 D1
1/2" 137 31 73 33 52 29 1/2" 1/2" 0.52 160 56
3/4" 148 33 82 33 56 34 3/4" 3/4" 0.76 171 56
1" 183 40 98 45 72 40 1" 1" 1 205 67
1-1/4" 208 50 110 48 86 50 1-1/4" 1-1/4" 1.28 227 67
1-1/2" 230 50 130 50 93 57 1-1/2" 1-1/2" 1.52 247 67
2" 262 55 150 57 102 66 2" 2" 2 287 82
T-60601 GENERAL MATERIAL
VALVE BOFY ASTM-C84400 SPRING Working Pressure 0.3~10kg/cm2
VALVE SEAT ASTM-C84400 STEM Working Temp -45°C ~ 185°C
DISC ASTM-C36040 CAP
Working Fluid Noncorrosive Gas, Steam, Air, Water, Noncorrosive Liquid
Bronze Safety Valve with Sealing
SIZE A B C D E F G H Lift A1 D1
1/2" 137 31 73 33 52 29 1/2" 1/2" 0.52 160 56
3/4" 148 33 82 33 56 34 3/4" 3/4" 0.76 171 56
1" 183 40 98 45 72 40 1" 1" 1 205 67
1-1/4" 208 50 110 48 86 50 1-1/4" 1-1/4" 1.28 227 67
1-1/2" 230 50 130 50 93 57 1-1/2" 1-1/2" 1.52 247 67
2" 262 55 150 57 102 66 2" 2" 2 287 82
T-60601 GENERAL MATERIAL
VALVE BOFY ASTM-C84400 SPRING Working Pressure 0.3~10kg/cm2
VALVE SEAT ASTM-C84400 STEM Working Temp -45°C ~ 185°C
DISC ASTM-C36040 CAP
Working Fluid Noncorrosive Gas, Steam, Air, Water, Noncorrosive Liquid
