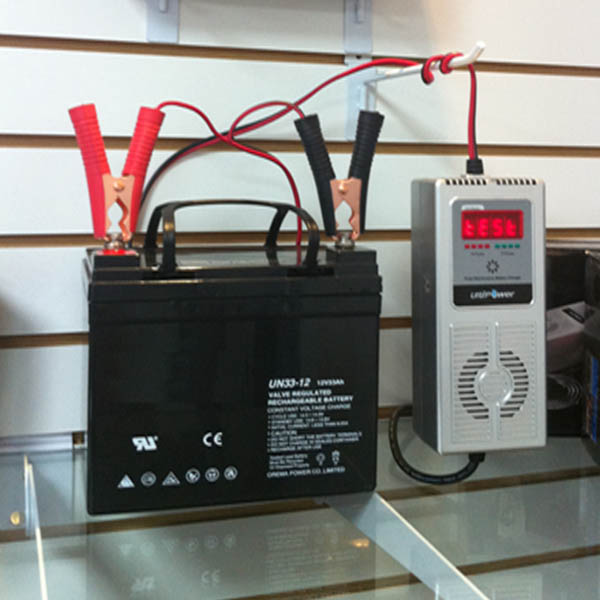

Great features:
Adopting MCU (micro control unit) system,switch mode design and reverse pulse technology, the chargers are more compact, reliable and advanced. The most important is the reverse pulse high technology.

Main features:
1.Patented reverse pulse technology
1 Reducing battery internal impedance, gassing and temperature rise
2 Restore the sulfate into liquid to recover battery capacity.
3 Maintain battery, extend battery service life and keep battery in good shape.
2.Battery recondition
The charger generate reverse pulse current to reduce battery impedance and battery gassing.Battery temperature is also greatly lowered.Prevent sulfation building up.
3.100% Automatic Charging
Automatic stops charging when the battery is full .You can leave the charger connected to battery without the risk of overcharging.The charger monitors the battery voltage and restarts when detect battery voltage drop to preset level duo to self discharge or load.
4.Smart and Compact
Small in size and light in weight
5.Digital Display
Display charge voltage and other information such as battery test and other protection codes.
6.Protection
Reverse polarity and short circuit protection .Prevents the output leads from sparking due to accidental reverse connection or short circuit.

Specification
Input voltage AC 110VAV or 220VAC ,50-60HZ Charger Type 7step ,full automatic switch mode
Charge control 14.4/14.7/13.6VDC Batteries 12V lead-acid batteries
Charging current 8A(MA) Battery size 40-100Ah(120Ah maintenance charging)
Ambient Temperature -20 °C to +50 °C Dimensions 178*78*54
Cooling fan cooling Weight 0.72
