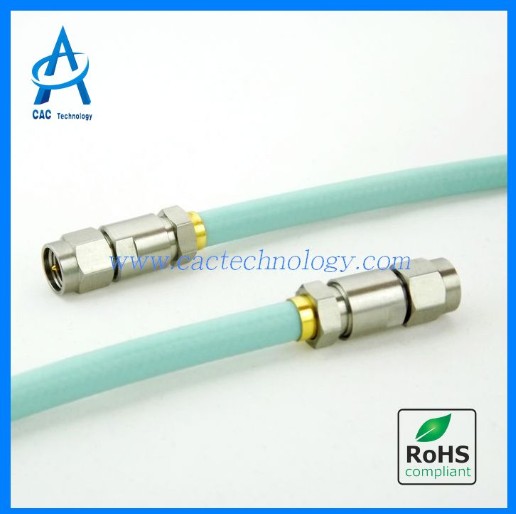

L47-SMM0-SMM0-XXX
Cable style: extra low loss and phase stable precision RF cable assembly
Attenuation: 1.10dB/m @ 18GHz
Suitable Connector: SMA /N /3.5mm
Material of Connector: Stainless Steel
Typical VSWR: 1.20 max up to 18GHz
Power Handing 160W@18GHz
18GHz SMA Male to Male with 5.3mm extra low loss low VSWR flexible Cable
----------------L47P2-SMM0SMM0-XXX RF Coaxial Cable Assembly------------
1. Precision RF cable assembly specially designed for the 18GHz testing or low loss and stable phase requirements
2.Excellent performance available in 26.5GHz while the 3.5mm connector’s being applied.
3. Superior Shielding Effectiveness，≥90@1GHz；
4. Extra low loss: 1.10dB/m @ 18GHz
5: Suitable Connector: SMA , N , 3.5mm
6. Material of Connector : stainless steel
7. Typical VSWR: 1.20 max up to 18GHz
8. Power Handing： 160W@18GHz
Cable Type 47P2
Operating Frequency(GHz) 26.5
Attenuation: 1.10dB/m @ 18GHz
Suitable Connector: SMA /N /3.5mm
Material of Connector: Stainless Steel
Typical VSWR: 1.20 max up to 18GHz
Power Handing 160W@18GHz
18GHz SMA Male to Male with 5.3mm extra low loss low VSWR flexible Cable
----------------L47P2-SMM0SMM0-XXX RF Coaxial Cable Assembly------------
1. Precision RF cable assembly specially designed for the 18GHz testing or low loss and stable phase requirements
2.Excellent performance available in 26.5GHz while the 3.5mm connector’s being applied.
3. Superior Shielding Effectiveness，≥90@1GHz；
4. Extra low loss: 1.10dB/m @ 18GHz
5: Suitable Connector: SMA , N , 3.5mm
6. Material of Connector : stainless steel
7. Typical VSWR: 1.20 max up to 18GHz
8. Power Handing： 160W@18GHz
Cable Type 47P2
Operating Frequency(GHz) 26.5
