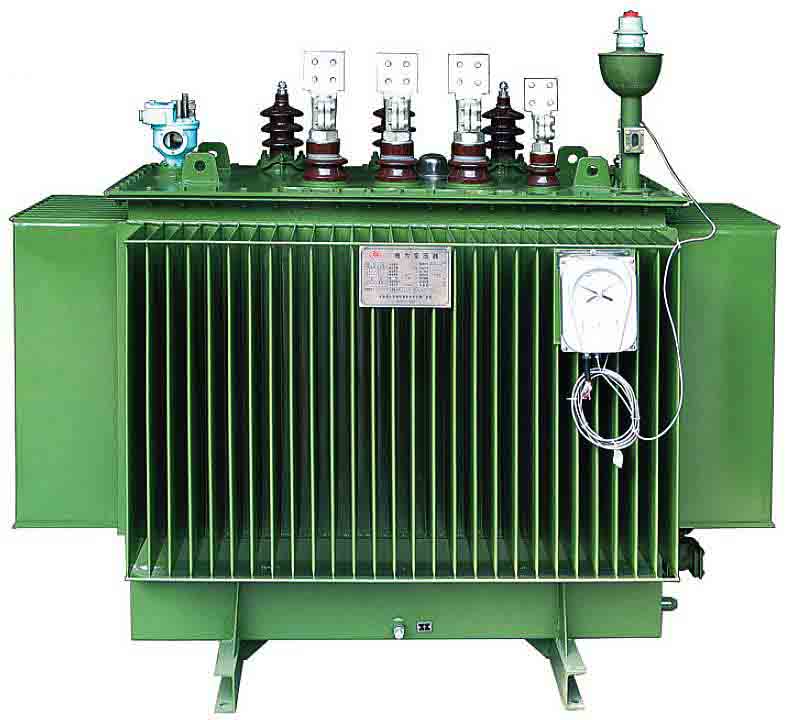

oil-immersed distribution transformer
Model No. S13-M-1000kVA
Product Name Oil-immersed Distribution Transformer
(Two Winding Non-Exciting Regulation Fully Sealed)
Rated Capacity kVA 1000
Rated High Voltage kV 6 / 6.3 / 10 / 10.5 / 11
High Volt. Tap Range ±5%, ±2x2.5%
Rated Low Voltage kV 0.4
Phase Number PH Three
Vector Group Yyn0 / Dyn11
No-load Loss W 870
Loading Loss W 10300
No-load Current % 0.14
Short-circuit impedance % 4.5
Oil Weight kg 700
Machine Weight kg 1765
Weight mm 3200
Base Gauge (Horizontal*Vertical) mm 820*820
Overall Dimension mm L1945 * W1260 * H1700
Product Name Oil-immersed Distribution Transformer
(Two Winding Non-Exciting Regulation Fully Sealed)
Rated Capacity kVA 1000
Rated High Voltage kV 6 / 6.3 / 10 / 10.5 / 11
High Volt. Tap Range ±5%, ±2x2.5%
Rated Low Voltage kV 0.4
Phase Number PH Three
Vector Group Yyn0 / Dyn11
No-load Loss W 870
Loading Loss W 10300
No-load Current % 0.14
Short-circuit impedance % 4.5
Oil Weight kg 700
Machine Weight kg 1765
Weight mm 3200
Base Gauge (Horizontal*Vertical) mm 820*820
Overall Dimension mm L1945 * W1260 * H1700
Certificate
- ISO9001:2000
