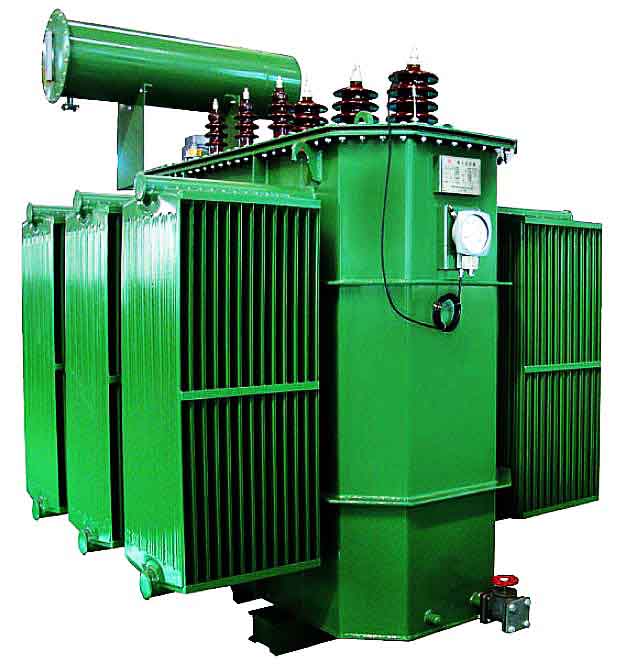

oil-immersed distribution transformer
Model No. S9-31500kVA
Product Name Oil-immersed Power Transformer
(Non-Exciting Regulation)
Rated Capacity kVA 31500
Rated High Voltage kV 35 / 38.5
High Volt. Tap Range 3.15 / 3.3 / 6.3 / 6.6 / 10.5 / 11
Rated Low Voltage kV ±5% / ±2x2.5%
Phase Number PH Three / Single
Vector Group Ynd11
No-load Loss W 25280
Loading Loss W 118800
No-load Current % 0.32
Short-circuit impedance % 8.00
Oil Weight kg 9020.0
Machine Weight kg 27500
Weight kg 46200
Base Gauge (Horizontal*Vertical) mm 2040*2040
Overall Dimension mm L5880 * W4880 * H4560
Product Name Oil-immersed Power Transformer
(Non-Exciting Regulation)
Rated Capacity kVA 31500
Rated High Voltage kV 35 / 38.5
High Volt. Tap Range 3.15 / 3.3 / 6.3 / 6.6 / 10.5 / 11
Rated Low Voltage kV ±5% / ±2x2.5%
Phase Number PH Three / Single
Vector Group Ynd11
No-load Loss W 25280
Loading Loss W 118800
No-load Current % 0.32
Short-circuit impedance % 8.00
Oil Weight kg 9020.0
Machine Weight kg 27500
Weight kg 46200
Base Gauge (Horizontal*Vertical) mm 2040*2040
Overall Dimension mm L5880 * W4880 * H4560
Certificate
- ISO9001:2000
Main Products
power transformer, oil-immersed transformer, dry-type transformer
