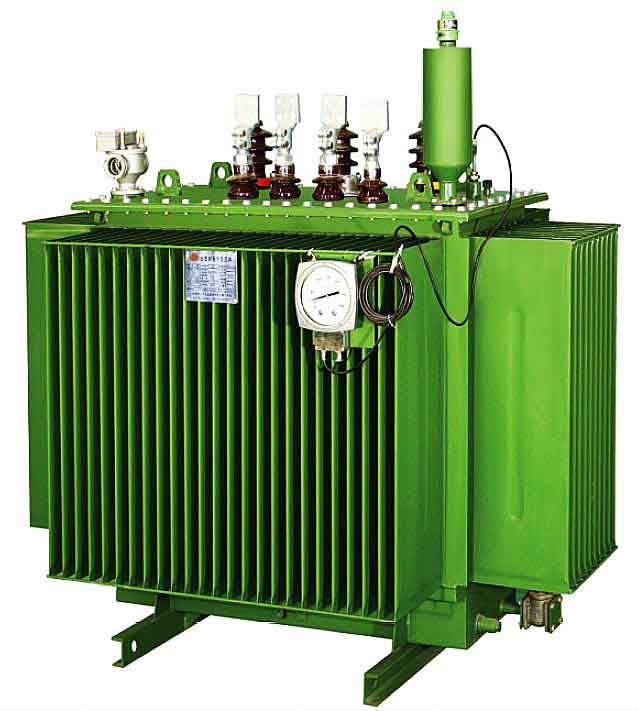

oil-immersed distribution transformer
Model No. S11-M-2500kVA
Product Name Oil-immersed Distribution Transformer
(Two Winding Non-Exciting Regulation Fully Sealed)
Rated Capacity kVA 2500
Rated High Voltage kV 6 / 6.3 / 10 / 10.5 / 11
High Volt. Tap Range ±5%, ±2x2.5%
Rated Low Voltage kV 0.4
Phase Number PH Three
Vector Group Yyn0 / Dyn11
No-load Loss W 2310
Loading Loss W 20700
No-load Current % 0.15
Short-circuit impedance % 5.00
Oil Weight kg 1400.0
Machine Weight kg 3150
Weight kg 5850
Base Gauge (Horizontal*Vertical) mm 820*820
Overall Dimension mm L2350 * W1450 * H2250
Product Name Oil-immersed Distribution Transformer
(Two Winding Non-Exciting Regulation Fully Sealed)
Rated Capacity kVA 2500
Rated High Voltage kV 6 / 6.3 / 10 / 10.5 / 11
High Volt. Tap Range ±5%, ±2x2.5%
Rated Low Voltage kV 0.4
Phase Number PH Three
Vector Group Yyn0 / Dyn11
No-load Loss W 2310
Loading Loss W 20700
No-load Current % 0.15
Short-circuit impedance % 5.00
Oil Weight kg 1400.0
Machine Weight kg 3150
Weight kg 5850
Base Gauge (Horizontal*Vertical) mm 820*820
Overall Dimension mm L2350 * W1450 * H2250
Certificate
- ISO9001:2000
