The Closest Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical parts lifetime warranty.
3.No charge for changing parts in one year by TNT Express.
Purpose

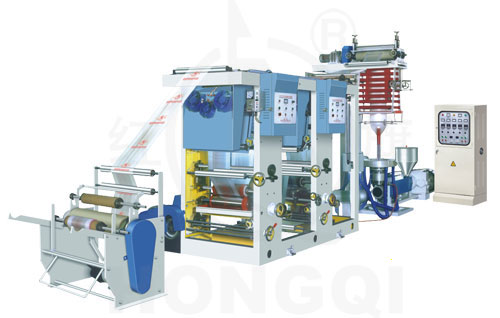

This machine set is used to blow Low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to produce various food and clothing packaging bags, garbage bags and vest bags for civil and industrial packaging uses.
Features
Combine film blowing and printing in one machine set with high production efficiency and good economic benefits.
Main Technical Parameters
Model CHSJ--35E CHSJ--40E CHSJ--45E
Raw material LDPE,HDPE LDPE,HDPE LDPE,HDPE
Diameter of screw 35 mm 40 mm 45 mm
L/D ratio of screw L/D 30:1 L/D 30:1 L/D 30:1
Main motor power 7.5kw 11kw 15kw
Extrusion capacity 25 kg/h 35 kg/h 50 kg/h
Die diameter 40-80 mm 80-130 mm 100-160 mm
Film width 600 mm 800 mm 1000 mm
Film thickness 0.003-0.1 0mm 0.003-0.10 mm 0.003-0.10 mm
Printing length 250-1000 mm 250-1000 mm 250-1000 mm
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical parts lifetime warranty.
3.No charge for changing parts in one year by TNT Express.
Purpose
This machine set is used to blow Low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to produce various food and clothing packaging bags, garbage bags and vest bags for civil and industrial packaging uses.
Features
Combine film blowing and printing in one machine set with high production efficiency and good economic benefits.
Main Technical Parameters
Model CHSJ--35E CHSJ--40E CHSJ--45E
Raw material LDPE,HDPE LDPE,HDPE LDPE,HDPE
Diameter of screw 35 mm 40 mm 45 mm
L/D ratio of screw L/D 30:1 L/D 30:1 L/D 30:1
Main motor power 7.5kw 11kw 15kw
Extrusion capacity 25 kg/h 35 kg/h 50 kg/h
Die diameter 40-80 mm 80-130 mm 100-160 mm
Film width 600 mm 800 mm 1000 mm
Film thickness 0.003-0.1 0mm 0.003-0.10 mm 0.003-0.10 mm
Printing length 250-1000 mm 250-1000 mm 250-1000 mm
