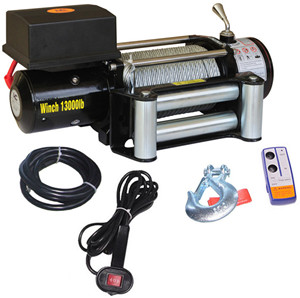

SEC13.0 12V or 24V
13000LB Heavy Duty Electric Winch
Specification:
Rated line pull: 13000lb (5897kg) single line
Motor: 6.0hp/4.5kw, series wound 12V
Control: Remote switch, 12ft (3.7m) lead
Gear train: 3 stage planetary
Gear reduction ratio: 230.4: 1
Clutch: Sliding ring gear
Braking: Automatic load-holding brake
Drum size: Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Cable: Ø9.5*26m
Fairlead: 4-way roller steel fairlead
Wireless Remote control: Optional
Battery recommended: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finishing: Black, dark grey coating
Overall dimension (L*W*H): 538*160*214mm
Mounting bolt pattern: 10”*4.5″ (254*114.3mm)
N. W. /G. W.: 37/39KG
Packing: foam package, 1PC/CTN

Winch features
1. Series wound high hp motor, delivers plenty of power.
2. Gears are made of 20Cr steel, crafted with cold extrusion and heat treatment, to meet your toughest pulling demand.
3. Key way cam clutch 191:1, rotating to get winch fully engaged and disengaged; or sliding ring gear
4. 500A solenoid, compact design and sealed. Durable winching.
5. sealed winch and solenoid
6. Fine precision processed transmission shaft, to reduce vibration and noises.
7. We have 100% testing on winch pulling capacity and function.
8. Safe packages-foam and honeycomb carton / pallet
