water proof winch, cold extrusion 20Cr steel gears meet your toughest pulling demands, 500A solenoid, 100% function and pulling test.

SC12.0WX 12V or 24V

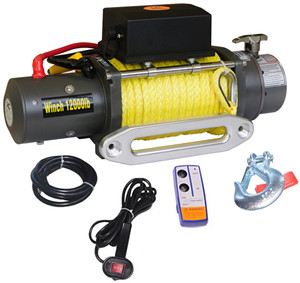

12000LB Heavy Duty Electric Winch
Specification:
Rated line pull: 12000lb (5443kg) single line
Motor: 6.0hp/4.5kw, series wound 12V
Control: Remote switch, 12ft (3.7m) lead
Gear train: 3 stage planetary
Gear reduction ratio: 191:1
Clutch: key way cam
Braking: Automatic load-holding brake
Drum size: Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Dynema rope: Ø10.0mm*28m
Fairlead: Polished and Anodized aluminum fairlead
Wireless Remote control: Optional
Battery recommended: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finishing: Black, dark grey coating
Overall dimension (L*W*H): 538*160*214mm
Mounting bolt pattern: 10″*4.5″ (254*114.3mm)
N. W. /G. W.: 27/29KG
Packing: foam package, 1PC/CTN

Key way cam clutch Features
1. Gears are 20Cr steel crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
2. Gear ratio 191:1, high line speed.
3. Rotating to get your winch fully engaged and disengaged both in two directions.
