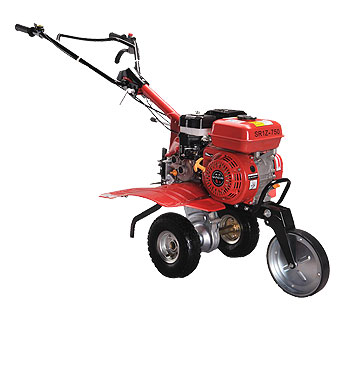

SR1Z-750 Gasoine-Tiller
Goods Description Goods Specification
Engine Engine Model SR170F/P
Engine Type OHV,25°tilt,Single Cylinder,Forced Air Cooling,4-Stroke
Bore×Stroke(mm) 70×54
Starting System Recoil Start
Rated Output(kw) 4
Rated Rotary Speed(r/min) 3600
Rotary Cultivator Tilling Depth(cm) ≥10
Tilling Scope(cm) 75
Working Speed(m/s) 0.14
Working Performance (hm2/h·m) ≥0.04
Fuel Consumption(kg/hm2) ≤30
Driving Mode Belt Transmission
Connection Mode Straight
Designing Rotary Speed(r/min) Slow:90 Fast:129
Max Radius of Gyration(mm) 165
Amount of Blades 24
The Model of Rotary Blade No.2 Blade
Package Tiller Size(mm) 1550×900×910
Package Dimensions(mm) 810×375×735
Loading Quantity (20/40/40HQ) 124/258/264
N.W(kg) 72.4
Engine Engine Model SR170F/P
Engine Type OHV,25°tilt,Single Cylinder,Forced Air Cooling,4-Stroke
Bore×Stroke(mm) 70×54
Starting System Recoil Start
Rated Output(kw) 4
Rated Rotary Speed(r/min) 3600
Rotary Cultivator Tilling Depth(cm) ≥10
Tilling Scope(cm) 75
Working Speed(m/s) 0.14
Working Performance (hm2/h·m) ≥0.04
Fuel Consumption(kg/hm2) ≤30
Driving Mode Belt Transmission
Connection Mode Straight
Designing Rotary Speed(r/min) Slow:90 Fast:129
Max Radius of Gyration(mm) 165
Amount of Blades 24
The Model of Rotary Blade No.2 Blade
Package Tiller Size(mm) 1550×900×910
Package Dimensions(mm) 810×375×735
Loading Quantity (20/40/40HQ) 124/258/264
N.W(kg) 72.4
